Diagnostic Test

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

DTC IS ACTIVE
1. Ignition on, engine not running.
2. With the scan tool, clear DTCs in the Powertrain Control Module (PCM).
3. Start the engine and allow it to reach normal operating temperature.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.
4. With the scan tool, select View DTCs.
  Is the status Active for this DTC?

  Yes
  - Go to step 2
  No
  - Perform the CHECKING FOR AN INTERMITTENT DTC diagnostic procedure. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K601) MFV CONTROL CIRCUIT SHORTED TO VOLTAGE

Fig 1: Checking MFV Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Manifold Flow Valve connector.
3. Disconnect the Powertrain Control Module (PCM) C2 harness connector.
4. Turn the ignition on.
5. Measure the voltage of the (K601) MFV Control circuit in the Manifold Flow Valve harness connector.
  Is there any voltage present?

  Yes
  - Repair the (K601) MFV Control circuit for a short to voltage.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 3
(K601) MFV CONTROL CIRCUIT OPEN OR HIGH RESISTANCE

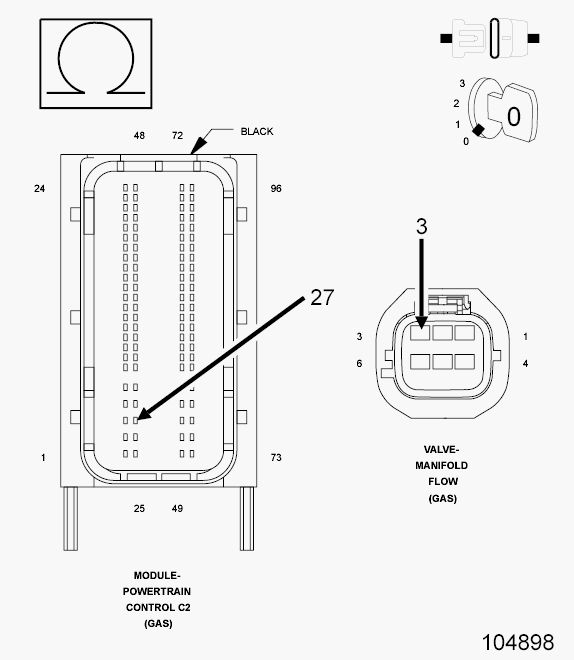

Fig 2: Checking MFV Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K601) MFV Control circuit between the Manifold Flow Valve harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go to step 4
  No
  - Repair the (K601) MFV Control circuit for an open circuit or high resistance.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
MANIFOLD FLOW VALVE

Fig 3: Checking MFV Circuit
Courtesy of CHRYSLER LLC
1. Connect the Powertrain Control Module (PCM) C2 harness connector.
2. Turn the ignition on.
3. With the scan tool, actuate the Manifold Flow Valve control to the ON (100%) position.
4. Using a 12-volt test light connected to ground, check the (K601) MFV Control circuit in the Manifold Flow Valve harness connector.
  NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.
5. With the scan tool, actuate the Manifold Flow Valve control to the OFF (0%) position.
6. Using a 12-volt test light connected to ground, check the (K601) MFV Control circuit in the Manifold Flow Valve harness connector.
  NOTE: The test light should not be illuminated.

  Is the test light illuminated and bright with the actuator ON (100%) and not illuminated with the actuator OFF (0%)?

  Yes
  - Replace the Manifold Flow Valve in accordance with the Service Information.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 5
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Manifold Flow Valve and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Refer to any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
