P0580-Speed Control Switch 1 Circuit Low: Notes

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

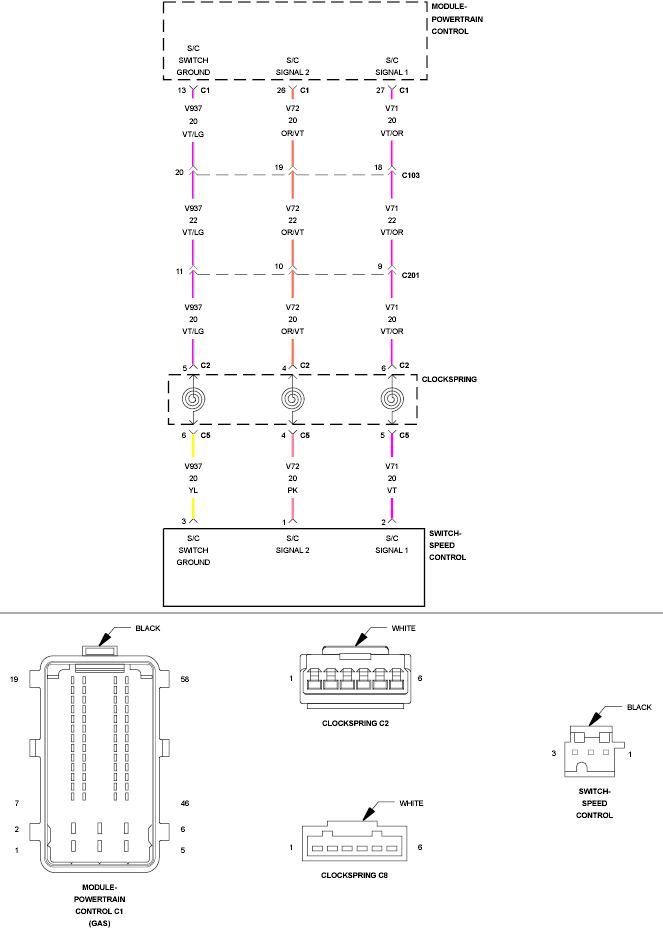

Fig 1: Speed Control Switch Circuit
GC0099970Courtesy of CHRYSLER LLC
