Diagnostic Test

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

DIAGNOSTIC TROUBLE CODE (DTC) IS ACTIVE
NOTE: A low engine oil pressure condition may cause this DTC to set. Verify correct engine oil pressure in accordance with the Service Information before proceeding with the diagnostic procedure.
1. Start the engine and allow it to reach normal operating temperature.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.
2. Using the scan tool, select View DTCs.
  Is the status Active for this DTC?

  Yes
  - Go To 2
  No
  - Perform the CHECKING FOR AN INTERMITTENT DTC diagnostic procedure. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(G6) EOP SIGNAL CIRCUIT SHORTED TO VOLTAGE

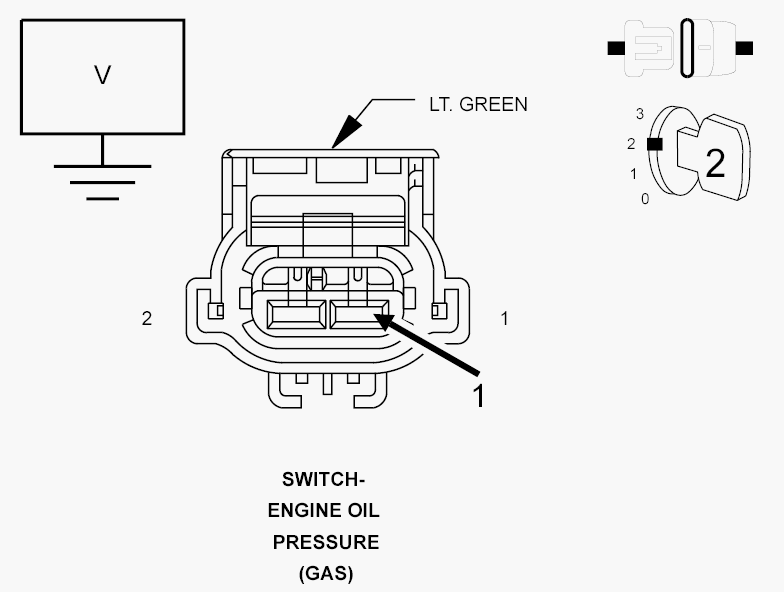

Fig 1: Checking EOP Signal Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Engine Oil Pressure Switch connector.
3. Disconnect the Powertrain Control Module (PCM) connector.
4. Turn the ignition on.
5. Measure the voltage of the (G6) EOP Signal circuit in the Engine Oil Pressure Switch harness connector.
  Is there any voltage present?

  Yes
  - Repair the (G6) EOP Signal circuit for a short to voltage.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go To 3
(G6) EOP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

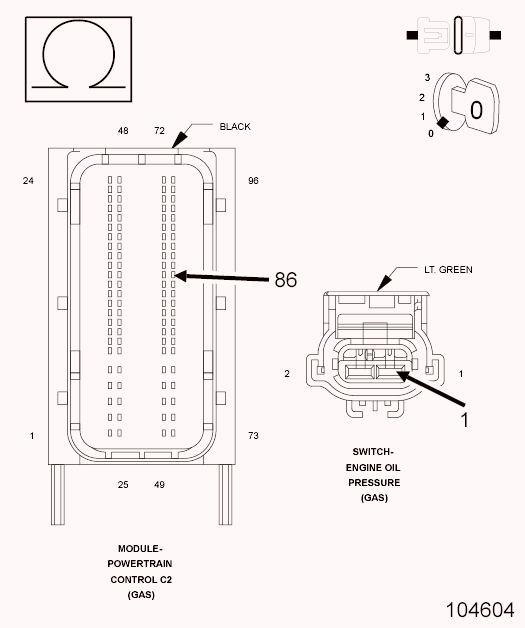

Fig 2: Checking EOP Signal Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance of the (G6) EOP Signal circuit between the Engine Oil Pressure Switch harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 4
  No
  - Repair the (G6) EOP Signal circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
ENGINE OIL PRESSURE SWITCH

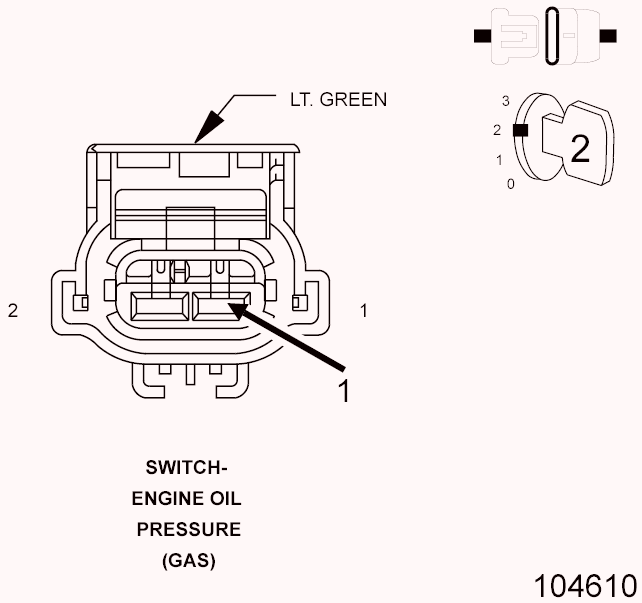

Fig 3: Checking EOP Signal Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Connect the Powertrain Control Module (PCM) connector.
3. Connect a jumper wire between ground and the (G6) EOP Signal circuit in the Engine Oil Pressure Switch harness connector.
4. Turn the ignition on.
  NOTE: The PCM should display an Engine Oil Pressure Sensor Circuit Low DTC with the jumper wire in place.

  Is the status Active for an Engine Oil Pressure Sensor Circuit High DTC with the jumper wire in place?

  Yes
  - Replace the Engine Oil Pressure Switch in accordance with the Service Information.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go To 5
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Engine Oil Pressure Switch and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Perform any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
