P0418-Secondary Air Injection System Control Circuit: Notes

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

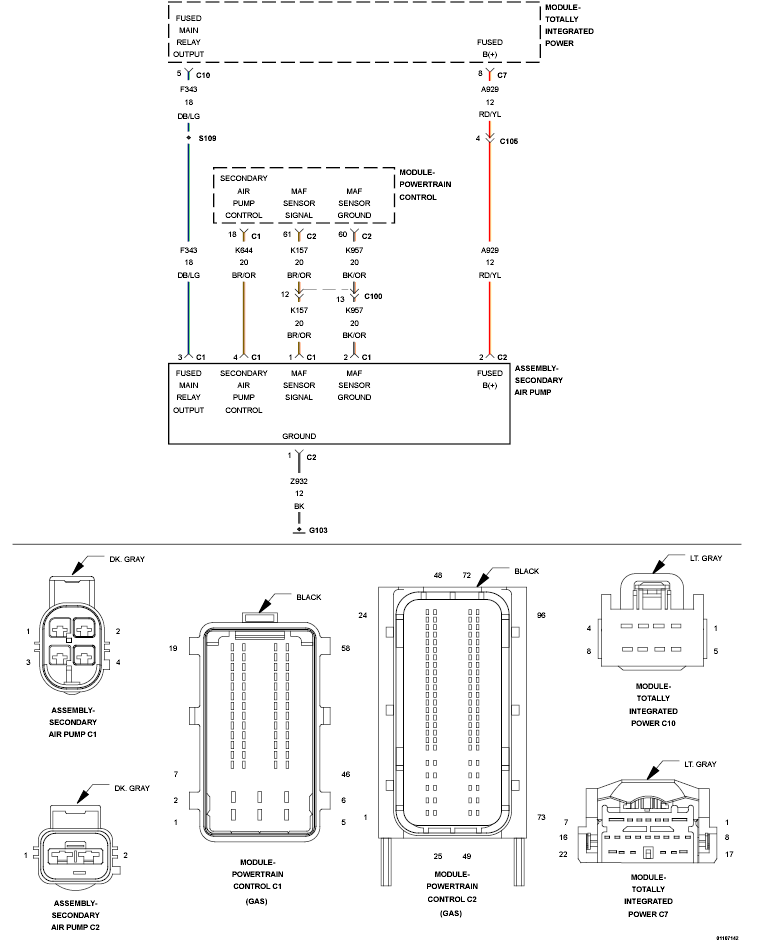

Fig 1: Secondary Air Injection System Control Circuit
GC0099891Courtesy of CHRYSLER LLC
