Diagnostic Test

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

DTC IS ACTIVE
1. Start the engine and allow it to reach operating temperature. If the engine will not start, crank the engine for several seconds.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.
2. With the scan tool, select View DTCs.
  Is the status Active for this DTC?

  Yes
  - Go to step 2
  No
  - Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
(F855) 5 VOLT SUPPLY CIRCUIT VOLTAGE

Fig 1: Checking 5-Volt Supply Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Crankshaft Position Sensor connector.
3. Turn the ignition on.
4. Measure the voltage of the (F855) 5 Volt Supply circuit in the Crankshaft Position Sensor harness connector.
  Is the voltage between 4.5 and 5.5 volts?

  Yes
  - Go to step 3
  No
  - Go to step 7
(K24) CKP SIGNAL CIRCUIT VOLTAGE

Fig 2: Checking CKP Sensor Circuit
Courtesy of CHRYSLER LLC
1. Measure the voltage of the (K24) CKP Signal circuit in the Crankshaft Position Sensor harness connector.
  Is the voltage between 4.5 and 5.5 volts?

  Yes
  - Go to step 4
  No
  - Go to step 11

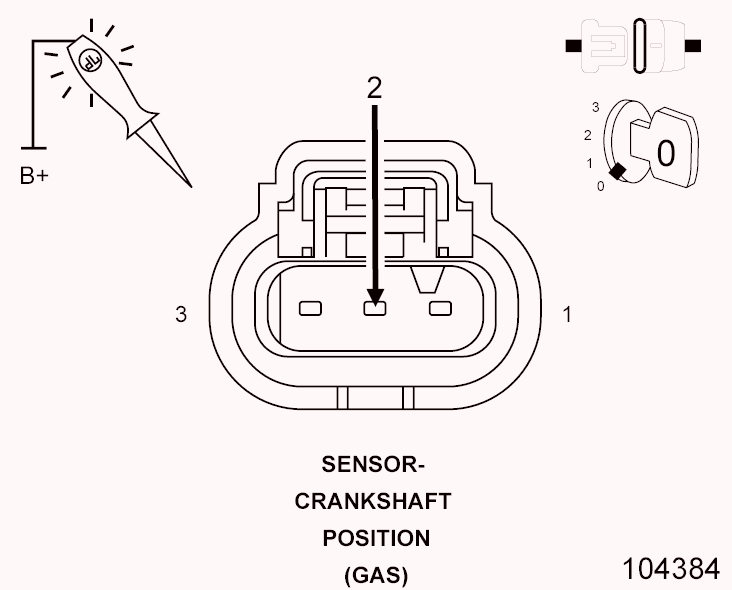

(K900) SENSOR GROUND CIRCUIT

Fig 3: Checking CKP Sensor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Using a 12 volt test light connected to 12 volts, check the (K900) Sensor Ground in the Crankshaft Position Sensor harness connector.
  NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

  Is the test light illuminated and bright?

  Yes
  - Go to step 5
  No
  - Go to step 15
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K24) CKP SIGNAL CIRCUIT

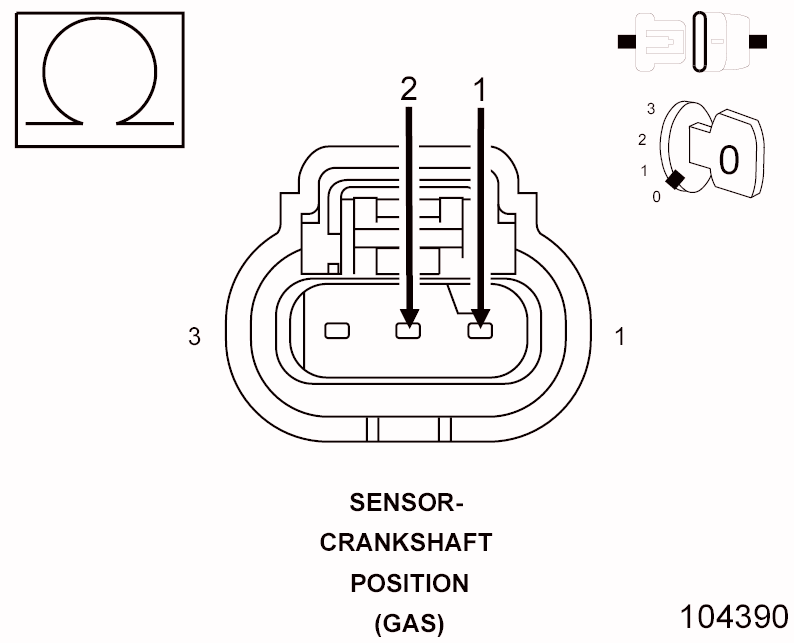

Fig 4: Checking 5-Volt Supply Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (F855) 5 Volt Supply circuit and the (K24) CKP Signal circuit in the Crankshaft Position Sensor harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 6
  No
  - Repair the (F855) 5 Volt Supply circuit for a short to the (K24) CKP Signal circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
CRANKSHAFT POSITION SENSOR
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Crankshaft Position Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Inspect the Crankshaft Position Sensor for conditions such as loose mounting screws, damage, or cracks.
5. If no other problems are found, remove the Crankshaft Position Sensor.
6. Inspect the Crankshaft Position Sensor and mounting area for any condition that would result in an incorrect signal, such as damage, foreign material, or excessive movement.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace the Crankshaft Position Sensor.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

Fig 5: Checking 5-Volt Supply Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) connector.
3. Turn the ignition on.
4. Measure the voltage of the (F855) 5 Volt Supply circuit in the Crankshaft Position Sensor harness connector.
  Is there any voltage present?

  Yes
  - Repair the (F855) 5 Volt Supply circuit for a short to voltage.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 8
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

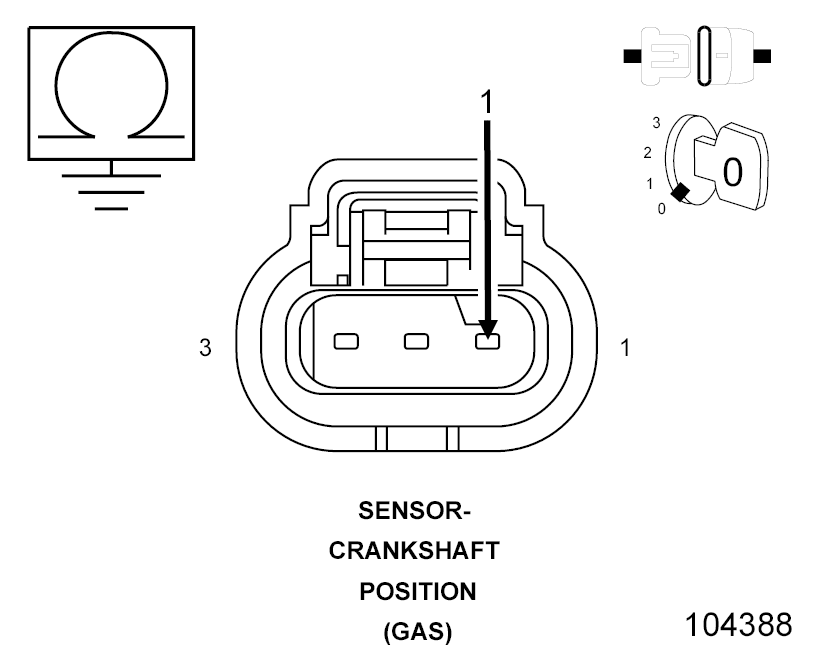

Fig 6: Checking 5-Volt Supply Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance between ground and the (F855) 5 Volt Supply circuit in the Crankshaft Position Sensor harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 9
  No
  - Repair the (F855) 5 Volt Supply circuit for a short to ground.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT

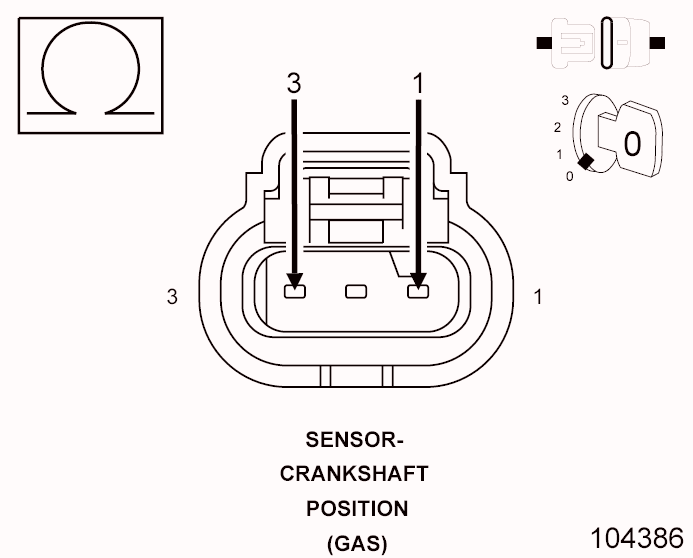

Fig 7: Checking 5-Volt Supply Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (F855) 5 Volt Supply circuit and the (K900) Sensor Ground circuit in the Crankshaft Position Sensor harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 10
  No
  - Repair the (F855) 5 Volt Supply circuit for a short to the (K900) Sensor Ground circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(F855) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

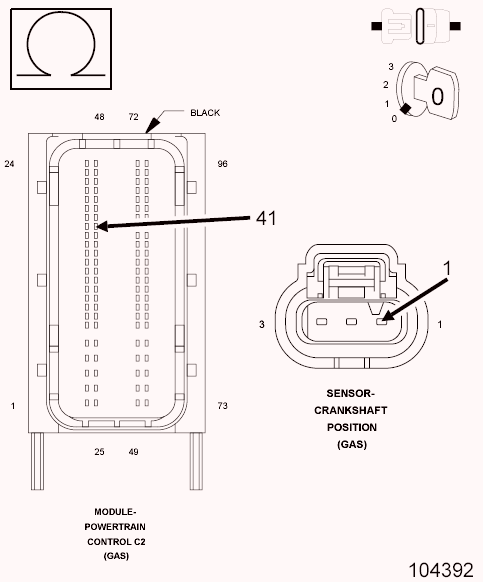

Fig 8: Checking 5-Volt Supply Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (F855) 5 Volt Supply circuit between the Crankshaft Position Sensor harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 16
  No
  - Repair the (F855) 5 Volt Supply circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K24) CKP SIGNAL CIRCUIT SHORTED TO VOLTAGE

Fig 9: Checking CKP Sensor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) connector.
3. Turn the ignition on.
4. Measure the voltage of the (K24) CKP Signal circuit in the Crankshaft Position Sensor harness connector.
  Is there any voltage present?

  Yes
  - Repair the (K24) CKP Signal circuit for a short to voltage.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 12
(K24) CKP SIGNAL CIRCUIT SHORTED TO GROUND

Fig 10: Checking CKP Sensor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance between ground and the (K24) CKP Signal circuit in the Crankshaft Position Sensor harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 13
  No
  - Repair the (K24) CKP Signal circuit for a short to ground.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K24) CKP SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT

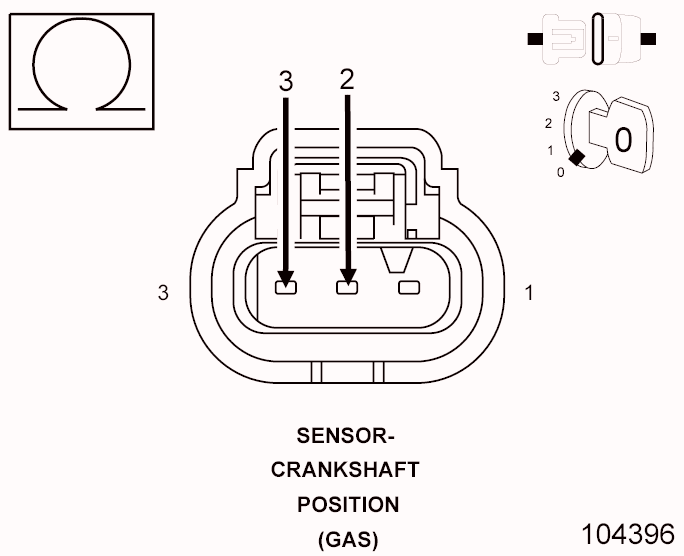

Fig 11: Checking CKP Sensor Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K24) CKP Signal circuit and the (K900) Sensor Ground circuit in the Crankshaft Position Sensor harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 14
  No
  - Repair the (K24) CKP Signal circuit for a short to the (K900) Sensor Ground circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K24) CKP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

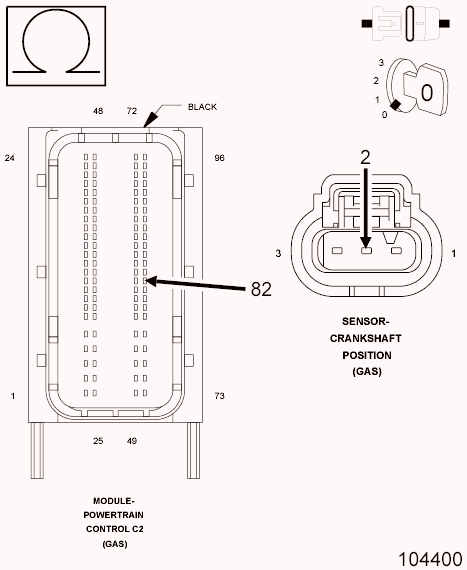

Fig 12: Checking CKP Sensor Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K24) CKP Signal circuit between the Crankshaft Position Sensor harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 16
  No
  - Repair the (K24) CKP Signal circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

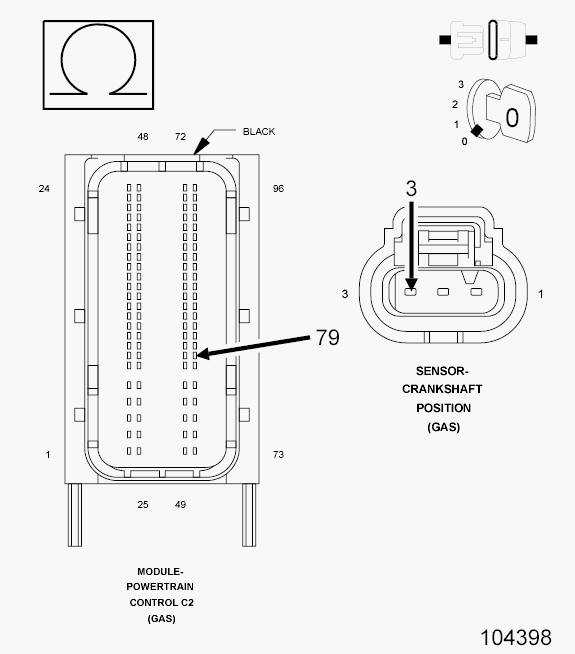

Fig 13: Checking CKP Sensor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) connector.
3. Measure the resistance of the (K900) Sensor Ground circuit between the Crankshaft Position Sensor harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 16
  No
  - Repair the (K900) Sensor Ground circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Crankshaft Position Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Refer to any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
