Diagnostic Test

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

DTC IS ACTIVE
1. Start the engine and allow it to reach normal operating temperature.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.

  NOTE: It may be necessary to test drive the vehicle within the DTC monitoring conditions in order for this DTC to reset.
2. Raise the engine speed to 2700 RPM for a minimum of 30 seconds.
3. With the scan tool, select View DTCs.
  Is the status Active for this DTC?

  Yes
  - Go to step 2
  No
  - Perform the CHECKING FOR AN INTERMITTENT DTC diagnostic procedure. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .

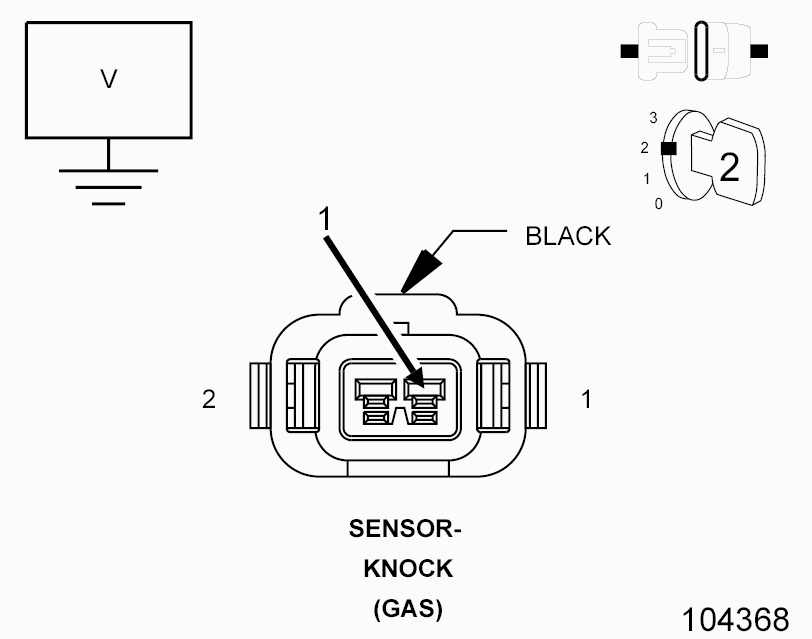

(K42) KS SIGNAL CIRCUIT SHORTED TO VOLTAGE

Fig 1: Checking Knock Sensor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Knock Sensor harness connector.
3. Disconnect the Powertrain Control Module (PCM) harness connector.
4. Turn the ignition on.
5. Measure the voltage of the (K42) KS Signal circuit in the Knock Sensor harness connector.
  Is there any voltage present?

  Yes
  - Repair the (K42) KS Signal circuit for a short to voltage.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 3

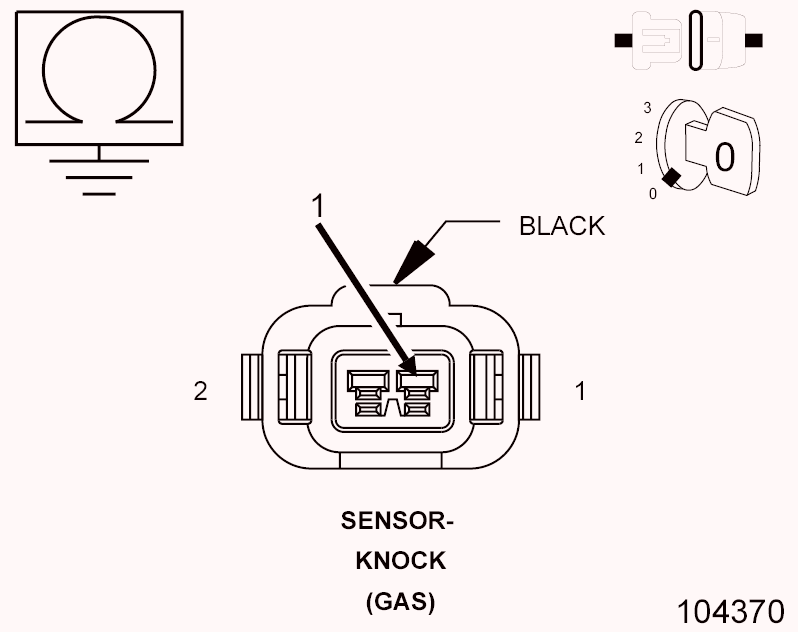

(K42) KS SIGNAL CIRCUIT SHORTED TO GROUND

Fig 2: Checking Knock Sensor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance between ground and the (K42) KS Signal circuit in the Knock Sensor harness connector.
  Is the resistance above 100 Ohms?

  Yes
  - Go to step 4
  No
  - Repair the (K42) KS Signal circuit for a short to ground.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .

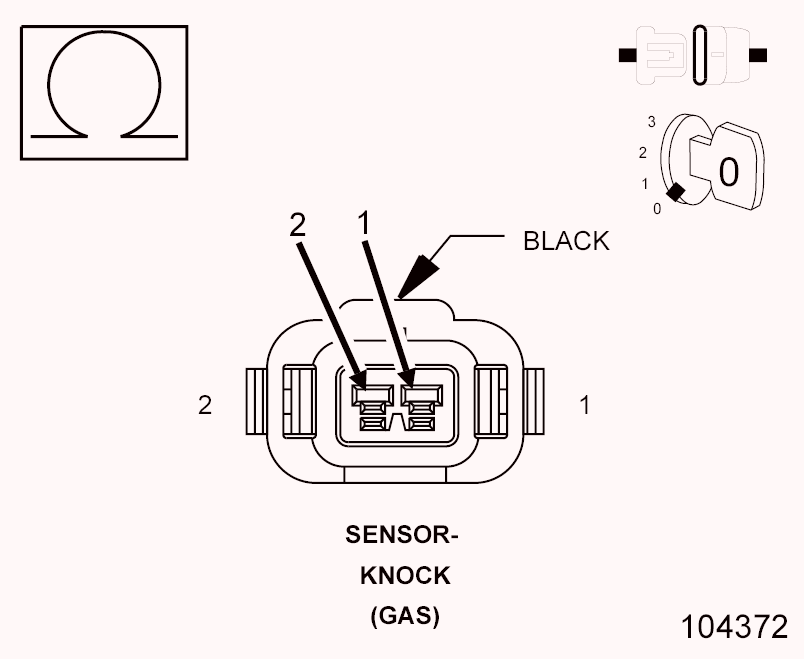

(K42) KS SIGNAL CIRCUIT SHORTED TO THE (K942) KS RETURN CIRCUIT

Fig 3: Checking Knock Sensor Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K42) KS Signal circuit and the (K942) KS Return circuit in the Knock Sensor harness connector.
  Is the resistance above 100 Ohms?

  Yes
  - Go to step 5
  No
  - Repair the (K42) KS Signal circuit for a short to the (K942) KS Return circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .

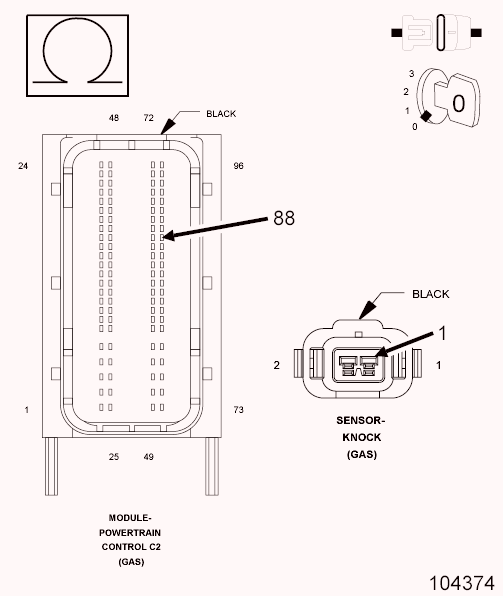

(K42) KS SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

Fig 4: Checking Knock Sensor Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K42) KS Signal circuit between the Knock Sensor harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go to step 6
  No
  - Repair the (K42) KS Signal circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K942) KS RETURN CIRCUIT OPEN OR HIGH RESISTANCE

Fig 5: Checking Knock Sensor Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K942) KS Return circuit between the Knock Sensor harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go to step 7
  No
  - Repair the (K942) KS Return for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
KNOCK SENSOR
1. Turn the ignition off.
2. Connect the Powertrain Control Module (PCM) connector.
3. Replace the Knock Sensor in accordance with the Service Information.
4. Start the engine and allow it to reach normal operating temperature.
5. With the scan tool, select View DTCs.
  Is status Active for this DTC?

  Yes
  - Go to step 8
  No
  - Test Complete.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Knock Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Perform any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
