Diagnostic Test

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
  1. DTC IS ACTIVE
    NOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with this test.
    1. Start the engine and allow it to reach normal operating temperature.
      WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.
    2. With the scan tool, select View DTCs.

      Is the status Active for this DTC?

      Yes

      • Go to step  2

      No

  2. (K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
    Fig 1: Checking Fused Main Relay Output Circuit
    GC0099811Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Disconnect the Fuel Injector 2 harness connector.
    3. Turn the ignition on.
    4. Using a 12 volt test light connected to ground, check the (K343) Fused Main Relay Output circuit in the Fuel Injector 2 harness connector.
      NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

      Is the test light illuminated and bright?

      Yes

      • Go to step  3

      No

  3. (K12) INJECTOR 2 CONTROL CIRCUIT SHORTED TO GROUND

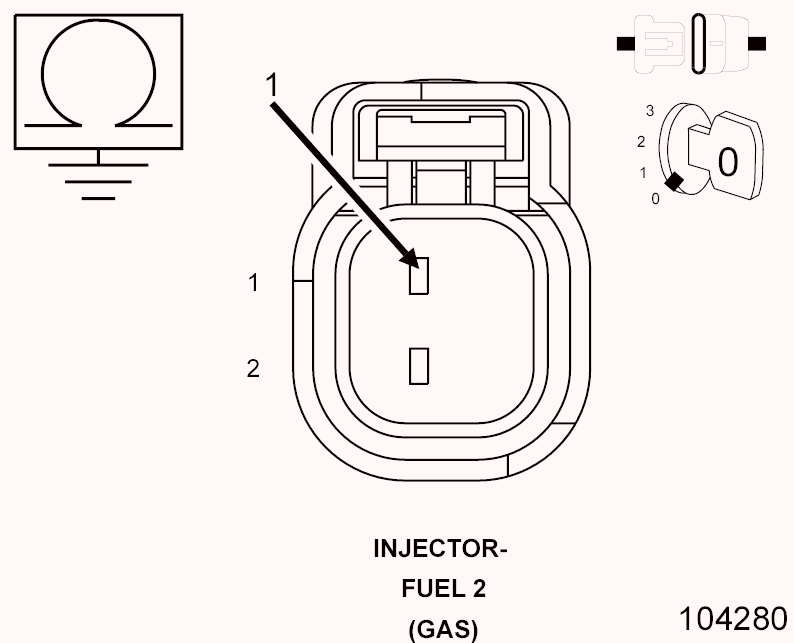

    Fig 2: Checking Injector Control Circuit
    GC0099829Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Disconnect the Powertrain Control Module (PCM) connector.
    3. Measure the resistance between ground and the (K12) Injector 2 Control circuit in the Fuel Injector 2 harness connector.

      Is the resistance above 100 ohms?

      Yes

      • Go to step  4

      No

  4. (K12) INJECTOR 2 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
    Fig 3: Checking Injector Control Circuit
    GC0099812Courtesy of CHRYSLER LLC
    1. Measure the resistance of the (K12) Injector 2 Control circuit between the Fuel Injector 2 harness connector and the Powertrain Control Module (PCM) harness connector.

      Is the resistance below 5.0 ohms?

      Yes

      • Go to step  5

      No

  5. FUEL INJECTOR 2
    1. Turn the ignition off.
    2. Measure the resistance between the terminals of Fuel Injector 2.
      NOTE: The resistance of the circuit will vary according to the temperature of the injector coil. Use the table below to determine the resistance range of the injector.

      Is the resistance of the injector within the specified range?

      Yes

      • Go to step  6

      No

    Fuel Injector Coil Resistance Based on Engine Temperature
    Temperature  Resistance
    -20° C (-4° F) 10 ohms (+/-.6 ohms)
    20° C (68° F) 12 ohms (+/-.6 ohms)
    60° C (140° F) 14 ohms (+/-.6 ohms)
    100° C (212° F) 16 ohms (+/-.6 ohms)
  6. POWERTRAIN CONTROL MODULE (PCM)
    1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Fuel Injector 2 and the Powertrain Control Module (PCM).
    • Look for any chafed, pierced, pinched, or partially broken wires.
    • Look for broken, bent, pushed out or corroded terminals.
    • Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
    • Look for the data to change or for the DTC to reset during the wiggle test.
    • Refer to any technical service bulletins that may apply.
