Diagnostic Test

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

DTC IS ACTIVE
NOTE: Diagnose any CAN - C Communication DTCs before continuing.

NOTE: Diagnose and repair any system voltage DTCs before continuing with this test.
1. Start the engine and allow it to reach normal operating temperature.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.
2. With the scan tool, select View DTCs.
  Is the status Active for this DTC?

  Yes
  - Go to step 2
  No
  - Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
(G31) AAT SIGNAL CIRCUIT SHORTED TO GROUND

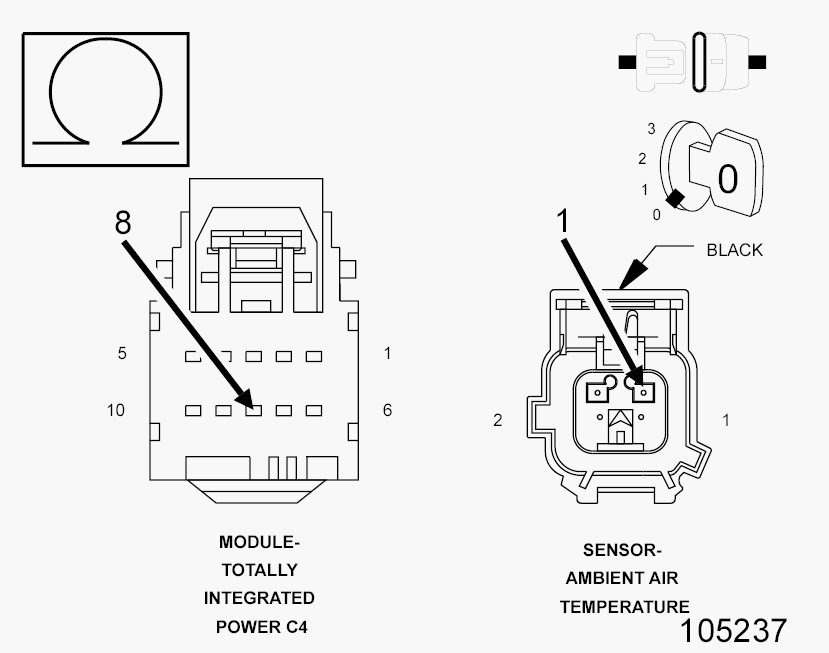

Fig 1: Checking AAT Signal Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Ambient Air Temperature Sensor connector.
3. Disconnect the Totally Integrated Power Module (TIPM) connector.
4. Measure the resistance between ground and the (G31) AAT Signal circuit in the Ambient Air Temperature Sensor harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 3
  No
  - Repair the (G31) AAT Signal circuit for a short to ground.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(G31) AAT SIGNAL CIRCUIT SHORTED TO (G931) AAT SENSOR GROUND CIRCUIT

Fig 2: Checking AAT Signal Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (G31) AAT Signal circuit and the (G931) AAT Sensor Ground circuit in the Ambient Air Temperature Sensor harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 4
  No
  - Repair the (G31) AAT Signal circuit for a short to the (G931) AAT Sensor Ground circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(G31) AAT SIGNAL CIRCUIT OPEN CIRCUIT OR HIGH RESISTANCE

Fig 3: Checking AAT Signal Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (G31) AAT Signal circuit between the Ambient Air Temperature Sensor harness connector and the Totally Integrated Power Module (TIPM) harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 5
  No
  - Repair the (G31) AAT Signal circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
AMBIENT AIR TEMPERATURE SENSOR
1. Turn the ignition off.
2. Connect the Totally Integrated Power Module (TIPM) connector.
3. Turn the ignition on.
4. With the scan tool, read the Ambient Air Temperature Sensor signal voltage.
  Is the voltage above 4.5 volts with the Ambient Air Temperature Sensor harness disconnected?

  Yes
  - Replace the Ambient Air Temperature Sensor in accordance with the service information.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 6
TOTALLY INTEGRATED POWER MODULE (TIPM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Ambient Air Temperature Sensor and the Totally Integrated Power Module (TIPM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Refer to any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Totally Integrated Power Module (TIPM) in accordance with the Service Information.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
