No Response From TCM (Transmission Control Module) (CVT): Notes
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

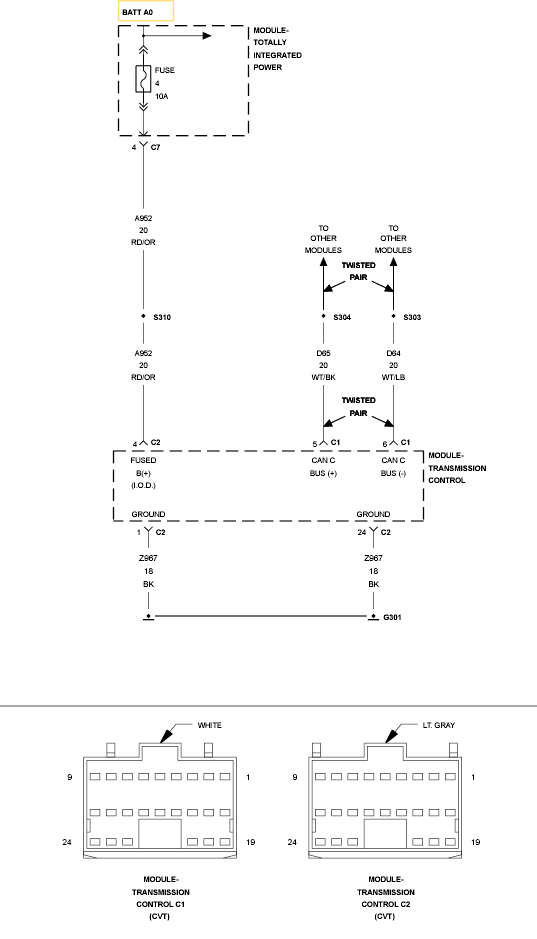

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
| Possible Causes |
|---|
| (A952) FUSED B(+) CIRCUIT OPEN OR SHORTED |
| (Z967) GROUND CIRCUIT OPEN |
| (D65) CAN C BUS (+) CIRCUIT OPEN |
| (D64) CAN C BUS (-) CIRCUIT OPEN |
| TRANSMISSION CONTROL MODULE |
