Diagnostic Test

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

TEST FOR INTERMITTENT CONDITION
NOTE: Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.
1. Turn the ignition on.
  NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
2. With the scan tool, select ECU view.
  NOTE: A red "X" will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

  NOTE: Check the TIPM for any active CAN C hardware DTCs, perform DTC before proceeding.

  Does the scan tool display a red "X" next to the module?

  Yes
  - Go to Step 2.
  No
  - The no response condition is not present at this time. Using Figure as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
(A931) FUSED B(+) CIRCUIT OPEN OR SHORTED

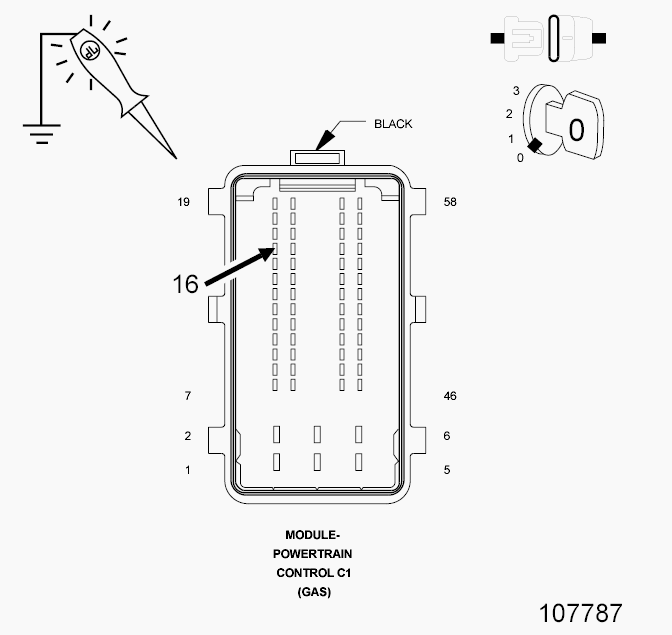

Fig 1: Checking Fused B(+) Circuit Using 12-Volt Test Light Connected To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the PCM C1 harness connector.
3. Using a 12-volt test light connected to ground, check the (A931) Fused B(+) circuit.
  Does the test light illuminate brightly?

  Yes
  - Go to Step 3.
  No
  - Repair the (A931) Fused B(+) circuit for an open or short.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(Z925) GROUND CIRCUIT OPEN

Fig 2: Checking Ground Circuit Using 12-Volt Test Light Connected To 12-Volts
Courtesy of CHRYSLER LLC
1. Using a 12-volt test light connected to 12-volts, check the (Z925) ground circuit.
  Does the test light illuminate brightly?

  Yes
  - Go to Step 4.
  No
  - Repair the ground circuit for an open.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(F202) IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED

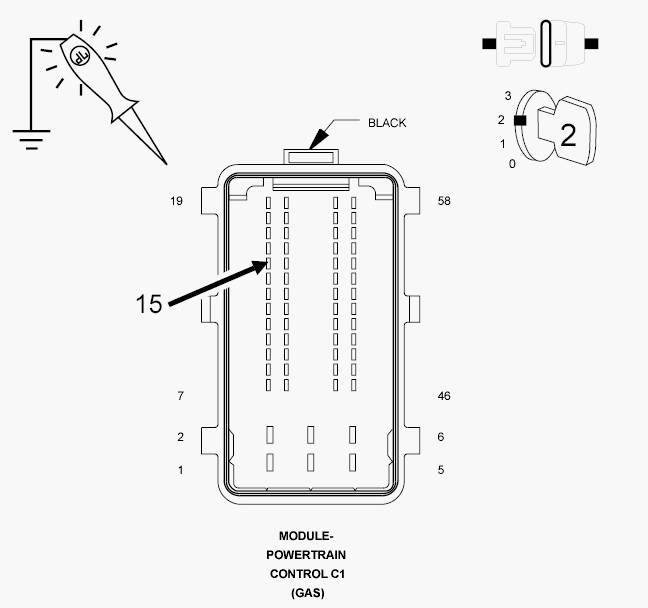

Fig 3: Checking Ignition Switch Output Circuit Using 12-Volt Test Light Connected To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Using a 12-volt test light connected to ground, check the (F202) Ignition Switch Output circuit.
  Does the test light illuminate brightly?

  Yes
  - Go to Step 5.
  No
  - Repair the (F202) Ignition Switch Output circuit for an open or short.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(D65) CAN C BUS (+) CIRCUIT OPEN

Fig 4: Measuring Resistance Of CAN C Bus (+) Circuit Between TIPM Harness Connector & PCM C1 Harness Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C3 harness connector.
3. Measure the resistance of the (D65) CAN C Bus (+) circuit between the TIPM C3 harness connector and the PCM C1 harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to Step 6.
  No
  - Repair the (D65) CAN C Bus (+) circuit for an open.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(D64) CAN C BUS (-) CIRCUIT OPEN

Fig 5: Measuring Resistance Of CAN C Bus (-) Circuit Between TIPM C3 Harness Connector & PCM C1 Harness Connector
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (D64) CAN C Bus (-) circuit between the TIPM C3 harness connector and the PCM C1 harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Replace and program the Powertrain Control Module in accordance with the Service Information.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Repair the (D64) CAN C Bus (-) circuit for an open.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
