No Response From CCN (Cluster): Notes
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

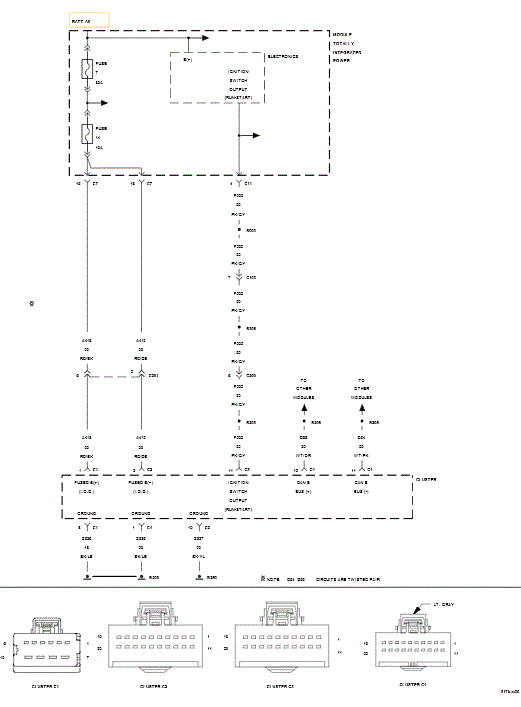

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
| Possible Causes |
|---|
| (A418) (A412) FUSED B(+) CIRCUITS OPEN OR SHORTED |
| (Z936) (Z937) GROUND CIRCUITS OPEN |
| (F202) IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED |
| (D55) AND (D54) CAN B BUS CIRCUITS OPEN |
| CLUSTER (CCN) |
