Circuit Schematic

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

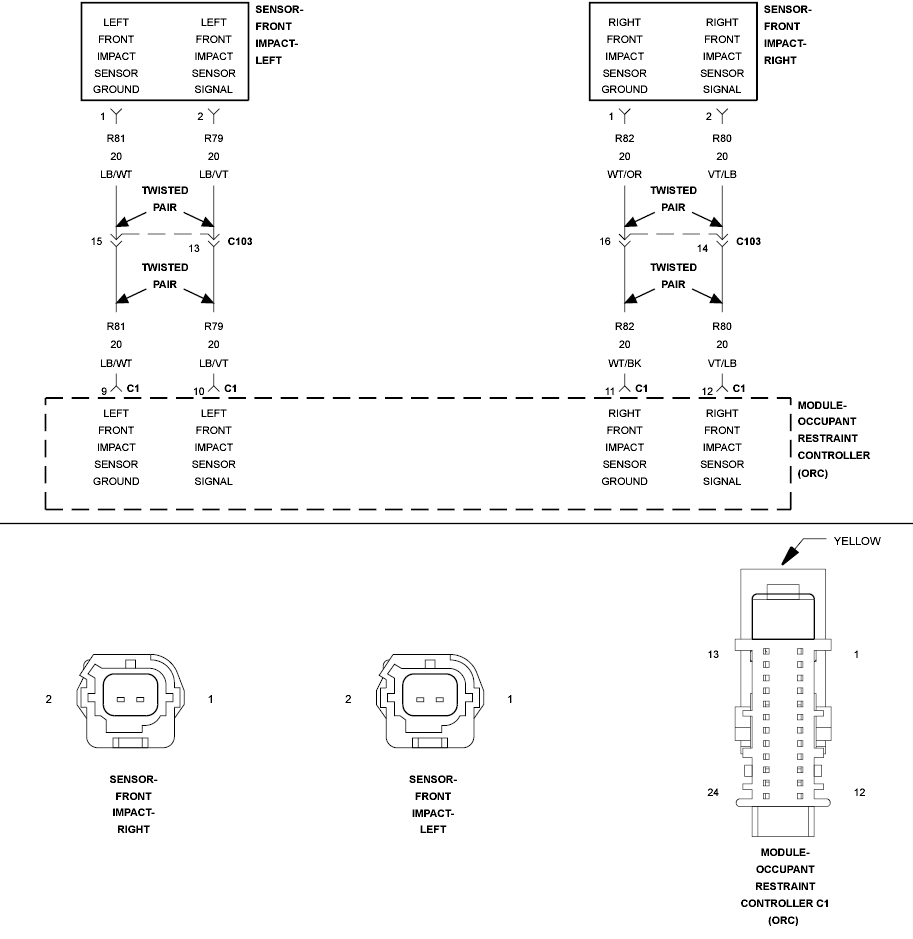

Fig 1: Left Front Impact Sensor Ground/Signal Circuit Schematic

Courtesy of CHRYSLER LLC
