Diagnostic Test

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

DETERMINE ACTIVE OR STORED DTC
NOTE: Make sure that the battery is fully charged.

NOTE: The scan tool, SRS Airbag Load Tool MRL 8443, and DVOM are required to perform the following test.
1. Turn the ignition on.
  Select ACTIVE or STORED DTC:

  ACTIVE DTC
  - Go to step 2
  STORED DTC
  - Go to step 6
CHECK FOR OPEN SQUIB CIRCUITS IN DRIVER AIRBAG

Fig 1: Checking For Shorted Squib Circuits In Driver Airbag
Courtesy of CHRYSLER LLC

WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Driver Airbag Squib connectors.
  WARNING: Do not place an intact undeployed airbag face down on a hard surface, the airbag propels into the air if accidentally deployed. Failure to follow these instructions may result in possible serious or fatal injury.

  NOTE: Check connectors - Clean and repair as necessary.
2. Connect the Load Tool 8443 and Jumper 8443-1 to the Driver Airbag Squib connectors.
  WARNING: Turn the ignition on, then reconnect the 12-volt battery. Wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTCs.
  Does the scan tool display: B1B02-DRIVER AIRBAG SQUIB 1 CIRCUIT OPEN?

  Yes
  - Go to step 3
  No
  - Replace the Driver Airbag in accordance with the Service Information.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECK THE CLOCKSPRING SQUIB CIRCUITS FOR AN OPEN

Fig 2: Checking Clockspring Squib Circuits For A Short To Ground
Courtesy of CHRYSLER LLC

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Load Tool 8443 and Jumper 8443-1 from the Driver Airbag Squib connectors.
2. Disconnect the Clockspring C4 connector.
  NOTE: Check connectors - Clean and repair as necessary.
3. Connect the Load Tool 8443 and Jumper 8443-19 to the Clockspring C4 connector.
  WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. With the scan tool, read the active ORC DTCs.
  Does the scan tool display: B1B02-DRIVER AIRBAG SQUIB 1 CIRCUIT OPEN?

  Yes
  - Go to step 4
  No
  - Replace the Clockspring in accordance with the Service Information.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECK (R43) DRIVER SQUIB 1 LINE 2 CIRCUIT FOR AN OPEN

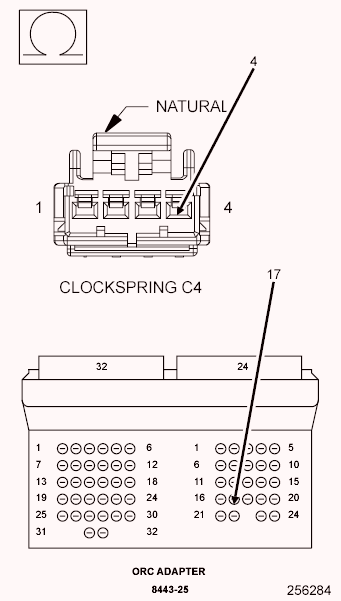

Fig 3: Checking Driver Squib 1 Line 2 Circuit For An Open
Courtesy of CHRYSLER LLC

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Load Tool 8443 and Jumper 8443-19 from the Clockspring C4 connector.
2. Disconnect the ORC connectors.
  NOTE: Check connectors - Clean and repair as necessary.
3. Connect the ORC Adaptor 8443-25 to the ORC connectors.
4. Measure the resistance of the (R43) Driver Squib 1 Line 2 circuit between the Clockspring C4 connector cavity 4 and the ORC Adaptor 8443-25 cavity 24-17.
  Is the resistance below 1.0 Ohm?

  Yes
  - Go to step 5
  No
  - Repair the R43 Driver Squib 1 Line 2 circuit for an open.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECK (R45) DRIVER SQUIB 1 LINE 1 CIRCUIT FOR AN OPEN

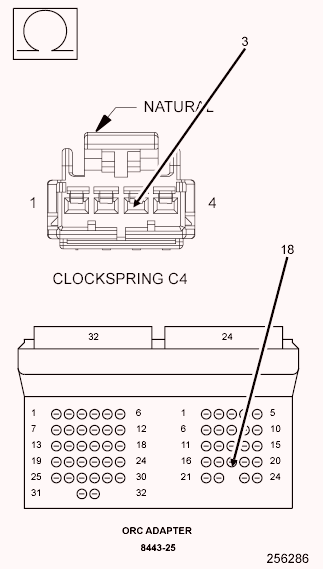

Fig 4: Checking Driver Squib 1 Line 1 Circuit For An Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (R45) Driver Squib 1 Line 1 circuit between the Clockspring C4 connector and the ORC Adaptor 8443-25.
  Is the resistance below 1.0 Ohm?

  Yes
  - Replace the ORC in accordance with Service Information.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
  No
  - Repair the (R45) Driver Squib 1 Line 1 circuit for an open.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECKING STORED OR INTERMITTENT CODES
NOTE: Diagnose and repair all active codes before diagnosing stored codes. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Diagnosis and Testing for a complete list of airbag system diagnostic procedures.
1. With the scan tool, record and erase all Airbag System Module DTCs.
  WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
2. Using the SYSTEM WIRING DIAGRAMS as a guide, inspect the related wiring and connectors for chafed, pierced, pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair as necessary.
3. Reconnect all disconnected components and harness connectors.
  WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. With the scan tool, monitor for active codes while performing the following:
  - Wiggle the wiring harness and connectors of the related airbag circuit.
  - Continue the test until either a code becomes active or the problem area is isolated.
5. In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question / causing the intermittent condition.
  Are any ACTIVE DTCs present?

  Yes
  - See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Diagnosis and Testing and perform the appropriate diagnostic procedure.
  No
  - No problem found at this time. Erase all codes before returning the vehicle to the customer.
