Circuit Schematic

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

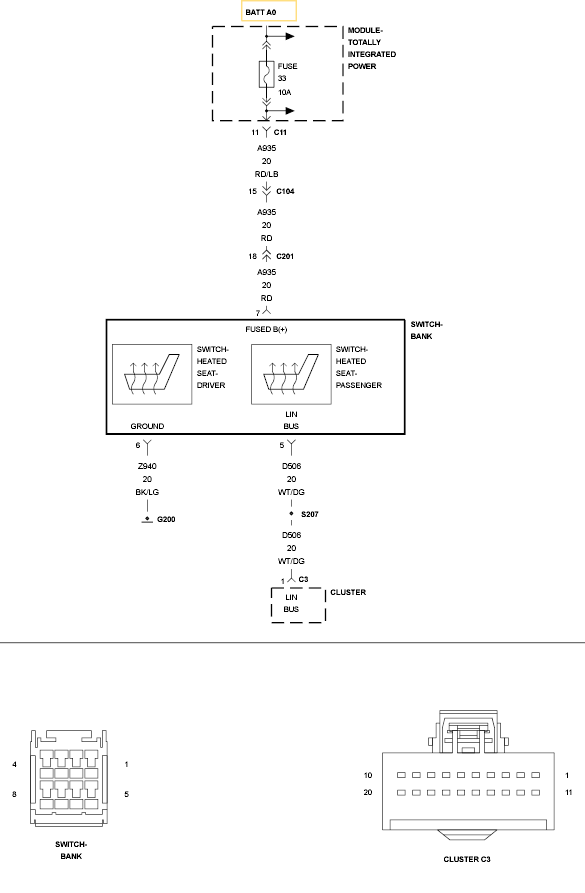

Fig 1: Switch Bank Module Circuit Schematic
GC0100466Courtesy of CHRYSLER LLC
