SHAFT, Output, 5th, 6th, and Reverse: Disassembly: Disassembly

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Retaining Bolt For Case Side Tapered Roller Bearing

Courtesy of CHRYSLER LLC

NOTE: The retaining bolt has left hand threads.

Remove the retaining bolt (2) for the case side tapered roller bearing (3).

Fig 2: Removing Case Side Reverse/5th/6th Output Shaft Bearing Using Remover L-4406 & Collets L-4406-2
Courtesy of CHRYSLER LLC
Using Remover L-4406 (1) and Collets L-4406-2 remove the case side reverse/fifth/sixth output shaft bearing.

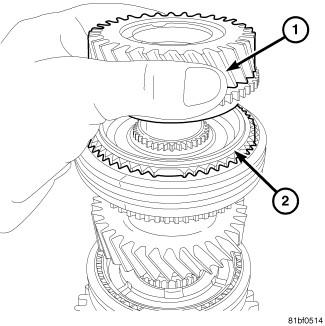

Fig 3: Removing/Installing 6th Gear At Output Shaft
Courtesy of CHRYSLER LLC
Remove sixth gear (1) from the output shaft.

Fig 4: Removing/Installing 6th Gear Needle Bearing At Output Shaft
Courtesy of CHRYSLER LLC
Remove sixth gear needle bearing (1) from output shaft.

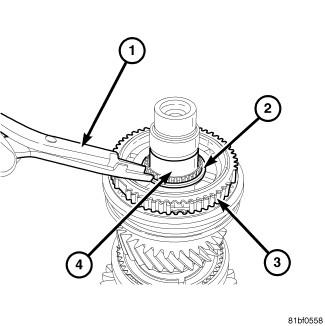

Fig 5: Removing Snap Ring Holding 5th/6th Gear Synchronizer Using Snap Ring Pliers
Courtesy of CHRYSLER LLC
Using Snap Ring Pliers (1) remove the snap ring (2) holding the fifth/sixth gear synchronizer (3).

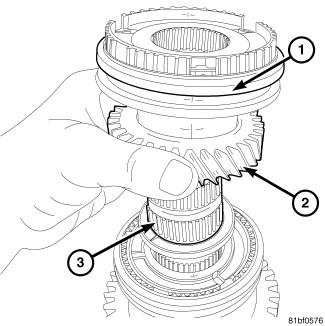

Fig 6: Removing/Installing 5th Gear & 5th/6th Gear Synchronizer
Courtesy of CHRYSLER LLC

NOTE: Insure synchronizer in the neutral position.
Remove fifth gear (2) and the fifth/sixth gear synchronizer (1) together.

Fig 7: Removing/Installing 5th Gear Needle Bearing At Output Shaft
Courtesy of CHRYSLER LLC
Remove the fifth gear needle bearing (1) from the output shaft (2).

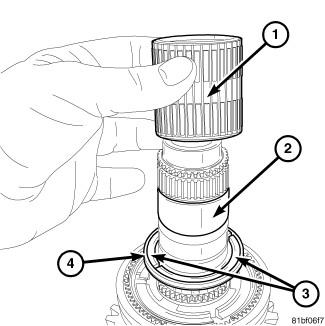

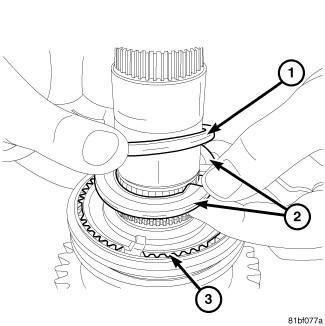

Fig 8: Removing/Installing Reverse Synchronizer Lock Ring Assembly At Output Shaft
Courtesy of CHRYSLER LLC
Remove the reverse synchronizer lock ring assembly (1, 2) from the output shaft.

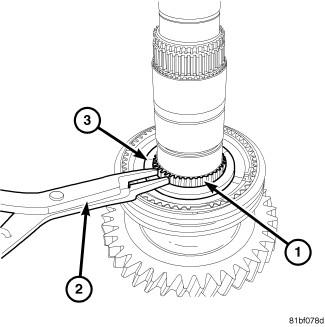

Fig 9: Removing/Installing Reverse Synchronizer Snap Ring Using Snap Ring Pliers
Courtesy of CHRYSLER LLC
Remove the reverse synchronizer snap ring (1) using Snap Ring Pliers (2).

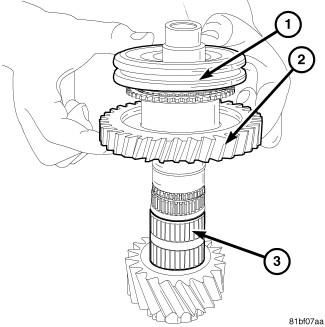

Fig 10: Removing/Installing Reverse Gear & Synchronizer
Courtesy of CHRYSLER LLC
Remove reverse gear (2) and the synchronizer (1) together.

Fig 11: Removing/Installing Reverse Needle Bearing At Output Shaft
Courtesy of CHRYSLER LLC
Remove the reverse needle bearing (2) from the output shaft (1).

Fig 12: Removing Bellhousing Side Taper Roller Bearing From Output Shaft Using Remover 5048-6, 5048-1 (2), Collets 6545 And Plug 8140-2
Courtesy of CHRYSLER LLC
Using Remover 5048-6, 5048-1 (2), Collets 6545 and Plug 8140-2, remove the bellhousing side reverse/fifth/sixth output shaft bearing from the output shaft (3).
