CABLE, Gearshift Control: Adjustments: Adjustment

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

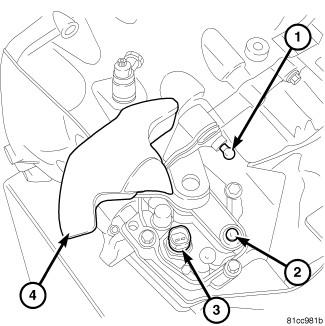

Fig 1: Removing/Installing Shift Cables At The Shift Tower

Courtesy of CHRYSLER LLC

NOTE: Perform cable adjustment with both cables disconnected from the shift tower.

NOTE: The shift tower weight (4) must be in the neutral position, this can be determined if the weight is not up or down but in the center gate.

With cables removed and the shift tower weight (4) in the center gate, place the transmission in fourth gear by pushing the weight (4) in the clockwise position until the select shaft ball stud (1) is unable to be moved.

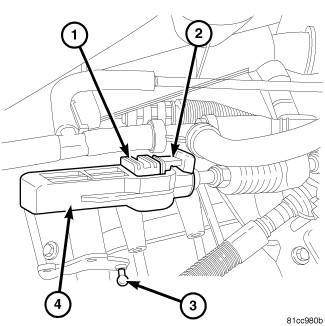

Fig 2: Identifying Lock Tab & Shift Cable
Courtesy of CHRYSLER LLC
Slide the lock tab (3) back to it's stop in the direction of the cable (4).

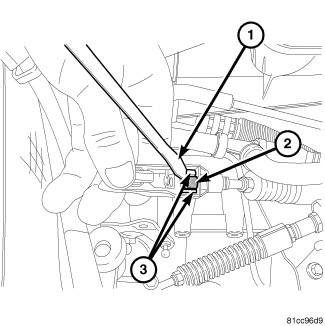

Fig 3: Pressing Adjustment Lock Down Using Screw Driver
Courtesy of CHRYSLER LLC
Using a screw driver (1) press adjustment lock (3) down until it is disengaged from the locking bar (2).

Fig 4: Identifying Adjustment Lock, Lock Tab, Select Cable, & Ball Stud
Courtesy of CHRYSLER LLC
With both the adjustment lock (1) and lock tab (2) in the unlocked position place the select cable (4) onto the ball stud (3) of the select shaft.
Close the adjustment lock (1) and lock tab (2).

Fig 5: Removing/Installing Shift Cables At The Shift Tower
Courtesy of CHRYSLER LLC
Install the shift cable onto the ball stud (2) of the shift tower.
Insure proper shift sequence is obtained.
