Section 44 (T355 Manual Transmission (Service Information)): Synchronizer: Assembly: Assembly

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Synchronizer Assembly

Courtesy of CHRYSLER LLC

1 - SLEEVE

2 - BALL

3 - KEY

4 - SPRING

5 - HUB

Position synchronizer hub (5) onto a suitable holding fixture (input shaft). The synchronizer hubs (5) are directional. The hubs must be installed with the U facing upward.

Install springs (4) into hub slot.

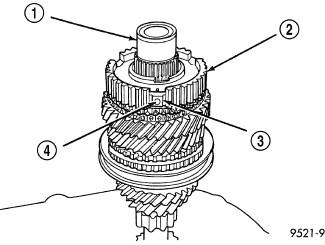

Fig 2: Inserting Synchronizer Balls Into Keys

Courtesy of CHRYSLER LLC

1 - INPUT SHAFT

2 - HUB

3 - KEY

4 - BALL

Insert key (3) into hub (2) and spring.
Apply petroleum jelly to the hole in the key. Insert balls (4) into each key.

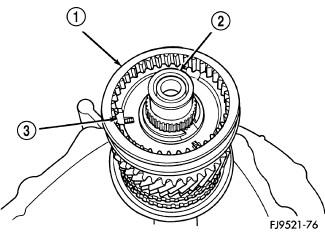

Fig 3: Identifying Synchronizer Sleeve, Input Shaft, & Key
Courtesy of CHRYSLER LLC

1 - SLEEVE

2 - INPUT SHAFT

3 - KEY

Slide sleeve (1) over the hub and depress balls as you carefully slip the sleeve into position .

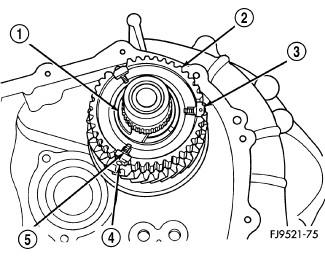

Fig 4: Centering Synchronizer Keys & Balls By Pushing On Both Stop Rings

Courtesy of CHRYSLER LLC

1 - SNAP RING

2 - CLUTCH

3 - KEY

4 - BALL

5 - SPRING

Line up stop ring tang over the keys in the hub, install stop rings, center the keys (3) and balls (4) by pushing on both stop rings.
