LEVER, Shift: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

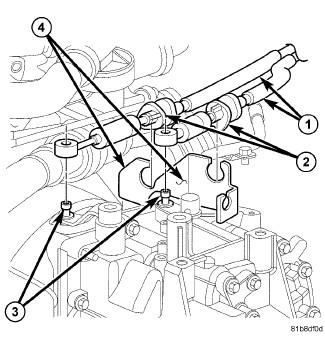

Fig 1: Removing/Installing Gearshift Control Cables
GC0082684Courtesy of CHRYSLER LLC
  1. Disconnect select cable (2) from select lever (3) and cable bracket.
  2. Using a pin punch, remove the select roll pin from lever.
  3. Pull up and remove the select lever from the transaxle select shaft.
