Fluid Drain And Fill
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
All T355 Manual Transaxles require the use of ATF+4 (Automatic Transmission Fluid).

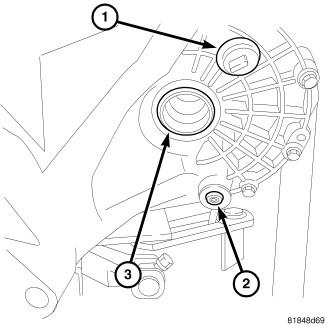

The transaxle fill plug (1) is located on the left side of the transaxle differential area. The fluid level should be within 3/16 inch from the bottom of the transaxle fill hole (vehicle must be level when checking).
The transaxle drain plug (2) is located on the lower right side of the transaxle differential housing. Tighten drain plug to 14 N.m (120 in. lbs.).
