CUPS, Differential Bearing: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

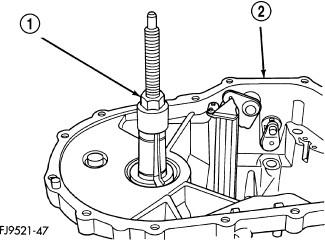

Fig 1: Identifying Remover L-4518 & Gear Case

Courtesy of CHRYSLER LLC

1 - SPECIAL TOOL L-4518

2 - GEAR CASE

Remove differential assembly from gear case (2). See DIFFERENTIAL, Transaxle .

Install Remover L-4518 (1) into the differential bearing cup.

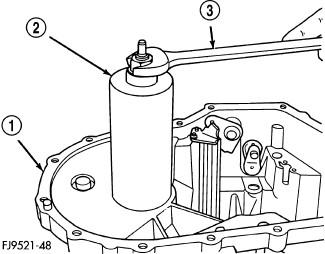

Fig 2: Removing/Installing Tool Cup

Courtesy of CHRYSLER LLC

1 - GEAR CASE

2 - SPECIAL TOOL L-4518

3 - WRENCH

Install the tool cup (2) over the tool.
Tighten the tool until the race is removed from the case.
