BEARING and RACE, Output: Installation: Installation

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

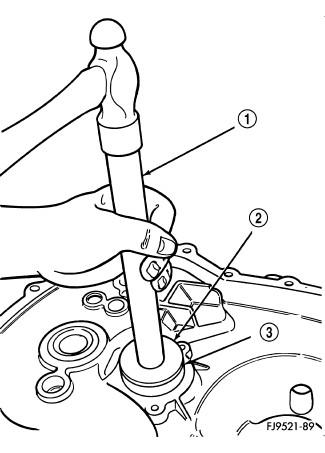

Fig 1: Identifying Installer 8692, Handle C-4171, & Output Bearing Race

Courtesy of CHRYSLER LLC

1 - HANDLE C-4171

2 - INSTALLER C-4628

3 - OUTPUT BEARING RACE

NOTE: Properly install race with tabs on lock feature.

Line up output bearing (3) to bore.
Insert tool Installer 8692 (2) with Handle C-4171 (1) onto output bearing. Tap bearing into bore. Verify that the larger diameter of the cage is facing outward. Position bearing retaining strap. Tighten bolts to 12 N.m (105 in. lbs.).
