Crankshaft Sprocket

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

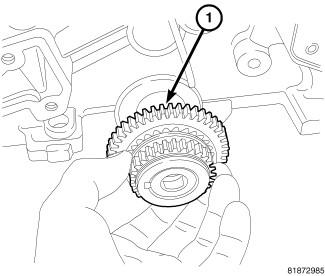

Fig 1: Crankshaft Sprocket
GC0084076Courtesy of CHRYSLER LLC
  1. Remove timing chain. See Engine/Valve Timing/CHAIN and SPROCKETS, Timing - Removal .
  2. Remove oil pan. See Engine/Lubrication/PAN, Oil - Removal .
  3. Remove oil pump drive chain tensioner.
  4. Remove oil pump drive chain.
  5. Remove crankshaft sprocket (1).
