Crankshaft Sprocket

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: CRANKSHAFT SPROCKET
GC0084076Courtesy of CHRYSLER LLC
  1. Install crankshaft sprocket (1) onto crankshaft.

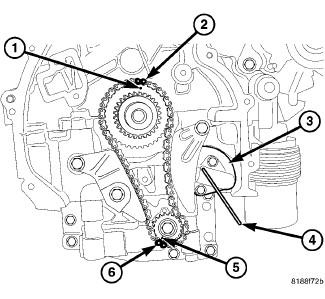

    Fig 2: BSM TENSIONER
    GC0084078Courtesy of CHRYSLER LLC
  2. Install oil pump drive chain. Verify that Oil pump is correctly timed (1,2,5,6).
    Fig 3: OIL PUMP TENSIONER RESET
    GC0084079Courtesy of CHRYSLER LLC
  3. Reset oil pump drive chain tensioner by pushing plunger inward and install tensioner pin 8514.
    Fig 4: BSM TENSIONER
    GC0084078Courtesy of CHRYSLER LLC
  4. Install oil pump drive chain tensioner (3) and remove Tensioner Pin 8514 (4).
  5. Install timing chain. See Engine/Valve Timing/CHAIN and SPROCKETS, Timing - Installation .
  6. Install oil pan. See Engine/Lubrication/PAN, Oil - Installation .
  7. Fill engine with oil. See Engine/Lubrication/OIL - Standard Procedure .
  8. Start engine and check for leaks.
