Oil Supply Line

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

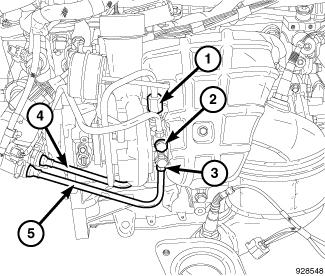

Fig 1: Coolant Supply Line
GC0103078Courtesy of CHRYSLER LLC
  1. Raise the vehicle on hoist.
  2. Remove the coolant return line (2).
  3. Disconnect the oil supply line from the brass fitting at the engine block. Hold the brass fitting with a wrench so it doesn't spin.
  4. If damaged, remove the brass fitting from the engine block.
  5. Lower the vehicle.
  6. Disconnect the oil supply line (1) at the turbocharger. Hold the brass fitting with a wrench so it doesn't spin.
  7. Remove oil supply line.
  8. If damaged, remove the brass fitting from the turbocharger.
