Installation - Charge Air Cooler

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

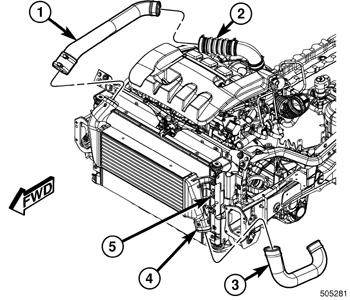

Fig 1: Charge Air Cooler & Hoses
GC0103075Courtesy of CHRYSLER LLC
NOTE: ILLUSTRATION SHOWN IN Fig 1 WITH FASCIA REMOVED FOR CLARITY.
  1. Position charge air cooler.
  2. Install the charge air cooler mounting bolts (5). Tighten the mounting bolts (5) to 8 N.m (70 in. lbs.).
  3. Install the lower charge air outlet tube (3).Tighten the clamps to 1.7 N.m (15 in. lbs.).

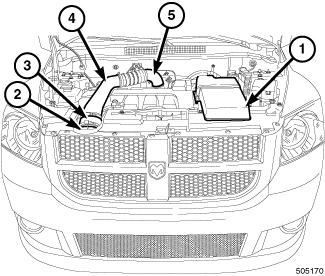

    Fig 2: Charge Air Cooler
    GC0103076Courtesy of CHRYSLER LLC
  4. Install the upper charge air inlet tube (4). Tighten the clamps to 1.7 N.m (15 in. lbs.).
  5. Install the upper radiator closure panel (2). Refer to Body/Exterior/PANEL, Closure - Installation .
