Diagnosis And Testing - Actuator Calibration

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

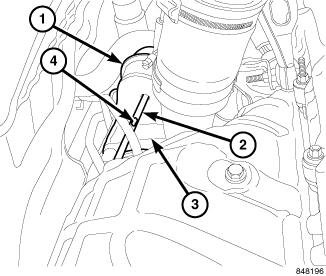

Fig 1: Wastegate Actuator Rod

Courtesy of CHRYSLER LLC

If an OVERBOOST or UNDERBOOST condition exists, check for DTCs. To identify the source of the DTC.

Using a paint pen, mark (4) the wastegate actuator rod (2) in line with the turbocharger to actuator mounting bracket (3).

Fig 2: CHARGE AIR HOSES AND VACUUM LINES AT TURBOCHARGER
Courtesy of CHRYSLER LLC
Remove the wastegate actuator pressure line (1).
Connect a 5mm (3/16 in.) diamiater tube onto the nipple on the wastegate actuator (2).
CAUTION: Do not exceed 135kpa (20 psi) or damage to the wastegate actuator diaphragm wiil result.
Using Air Pressure Regulator W-18-MIL-1146AS, apply 69 ± 3.5 kPa (10 ±.5 psi.) to the wastegate actuator.
The wastegate actuator rod should move a minimum of 6 mm (0.236 in.)
CAUTION: Do not attempt to adjust the wastegate actuator rod. Doing so will cause unreliable engine operation.
If the wastegate actuator is out of specification, replace the turbocharger.
