Section 43 (2.4L Engine (Service Information)): Removal: SRT4

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

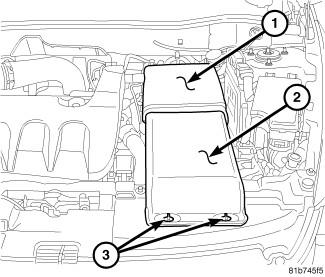

Fig 1: AIR INLET
GC0102942Courtesy of CHRYSLER LLC
  1. Perform fuel draining procedure.
  2. Remove hood.
  3. Evacuate A/C system.
  4. Drain coolant. Refer to Cooling - Standard Procedure .
  5. Remove air cleaner inlet (2).

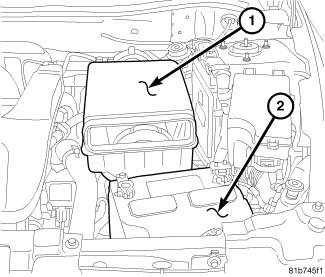

    Fig 2: BATTERY
    GC0102943Courtesy of CHRYSLER LLC
  6. Remove cables from battery (2).
  7. Remove battery (2).

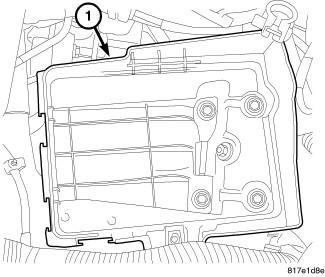

    Fig 3: BATTERY TRAY
    GC0102944Courtesy of CHRYSLER LLC
  8. Remove battery tray (1).

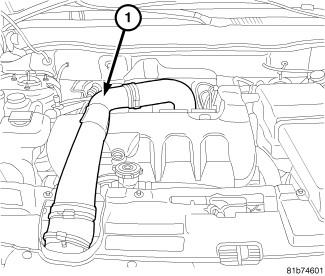

    Fig 4: TURBO OUTLET PIPE
    GC0102945Courtesy of CHRYSLER LLC
  9. Remove inter cooler inlet hose (1).
  10. Remove cooling module.
  11. Remove lower radiator hose from radiator and coolant adapter.

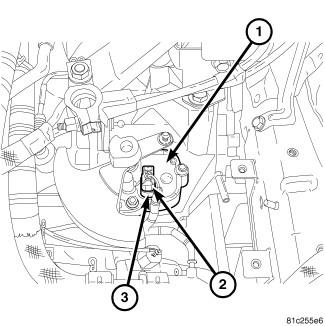

    Fig 5: BACKUP LAMP SWITCH
    GC0102946Courtesy of CHRYSLER LLC
  12. Disconnect reverse light connector (2) on transaxle.

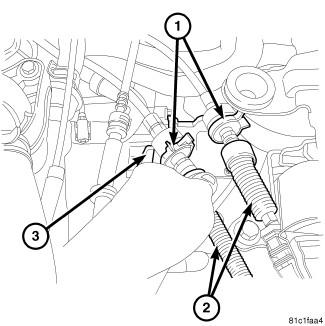

    Fig 6: SHIFT CABLES
    GC0102947Courtesy of CHRYSLER LLC
  13. Remove PCM and PCM bracket.
  14. Disconnect shift linkage cables (1).

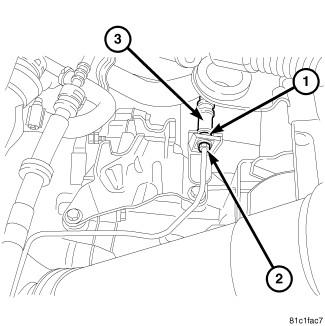

    Fig 7: HYDRO LINE AND CLIP
    GC0102948Courtesy of CHRYSLER LLC
  15. Disconnect hydraulic clutch line (3).
  16. Remove heater hoses from coolant adapter.
  17. Disconnect coolant after run pump electrical connector.
  18. Remove coolant after run pump from cowl.

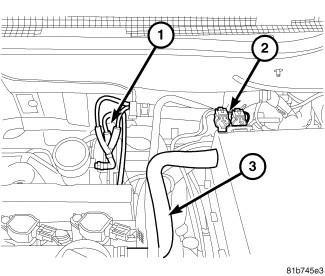

    Fig 8: SOLENOIDS
    GC0102949Courtesy of CHRYSLER LLC
  19. Disconnect solenoid electrical connectors (2).
  20. Disconnect air inlet temp sensor and boost pressure sensor electrical connectors.

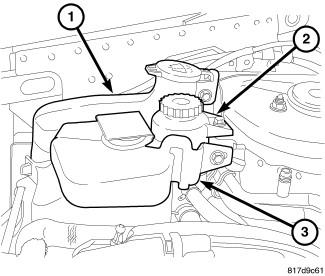

    Fig 9: COOLANT RESERVOIR
    GC0102950Courtesy of CHRYSLER LLC
  21. Remove coolant reservoir (3).

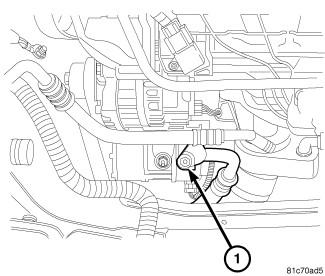

    Fig 10: A/C LINES
    GC0102951Courtesy of CHRYSLER LLC
  22. Remove A/C lines from compressor (1).
  23. Remove ground strap from cylinder head.

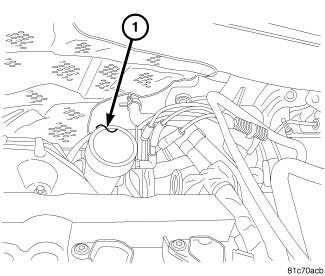

    Fig 11: VACUUM LINES
    GC0102952Courtesy of CHRYSLER LLC
  24. Remove vacuum lines from turbo charger (1).
  25. Remove vacuum line from intake manifold.
  26. Remove ground cable from bell housing.

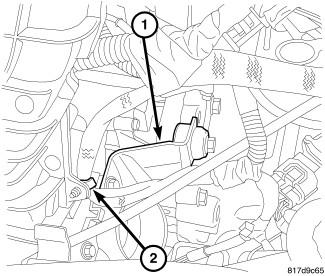

    Fig 12: THROTTLE BODY SUPPORT
    GC0102953Courtesy of CHRYSLER LLC
  27. Remove throttle body support (1).
  28. Remove harness retainer from intake manifold (2).

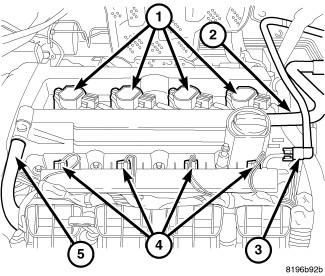

    Fig 13: COIL CONNECTOR
    GC0102954Courtesy of CHRYSLER LLC
  29. Disconnect fuel line (3).
  30. Disconnect oil control solenoids, oxygen sensor, MAP, ETC, flow control valve, oil temperature sensor, injectors, cam sensors, coils, capacitor, and coolant temperature sensor electrical connectors and reposition harness.
  31. Disconnect PCV hose (5).

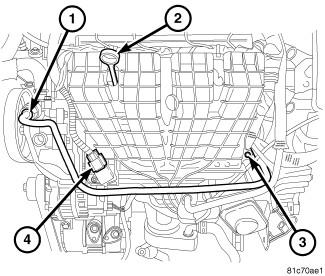

    Fig 14: POWER STEERING LINE
    GC0102955Courtesy of CHRYSLER LLC
  32. Remove dipstick (2).
  33. Disconnect power steering line (1) from pump.

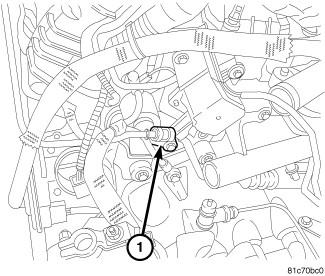

    Fig 15: POWER STEERING LINE SUPPORT
    GC0102956Courtesy of CHRYSLER LLC
  34. Remove power steering line support retaining bolt (1).
    Fig 16: Removing/Installing Intake Bolts In Sequence
    GC0082457Courtesy of CHRYSLER LLC
  35. Remove intake manifold retaining bolts.
  36. Remove intake manifold.
  37. Disconnect A/C, generator, starter, knock sensor, oil pressure sensor electrical connectors.
  38. Remove lower radiator hose from oil cooler.
    Fig 17: COOLANT RESERVOIR
    GC0102950Courtesy of CHRYSLER LLC
  39. Disconnect power steering return hose from power steering reservoir (2).
  40. Raise vehicle.
  41. Remove tires.
  42. Remove axle shafts.

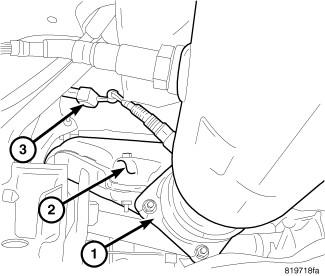

    Fig 18: CAT AT EXHAUST MANIFOLD
    GC0102957Courtesy of CHRYSLER LLC
  43. Disconnect downstream oxygen sensor electrical connector (3).
  44. Remove exhaust pipe from catalytic converter (1).

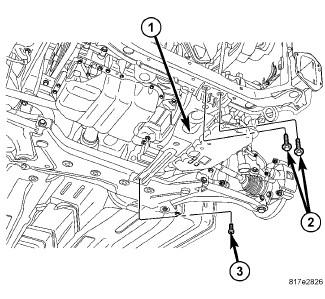

    Fig 19: Fore Aft Member Retaining Bolts
    GC0102958Courtesy of CHRYSLER LLC
  45. Remove front mount through bolt.
  46. Rear mount through bolt.
  47. Remove fore/aft member retaining bolts (2,3) and remove fore/aft member (1).
  48. Remove front engine mount bracket.

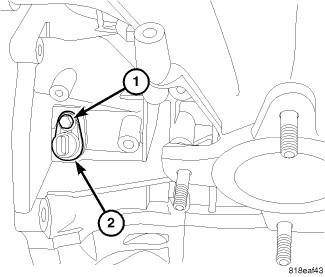

    Fig 20: Crankshaft Position Sensor
    GC0102959Courtesy of CHRYSLER LLC
  49. Remove lower bell housing bolts.
  50. Disconnect CKP sensor (2).
  51. Remove air inlet from turbo charger.
  52. Lower vehicle.

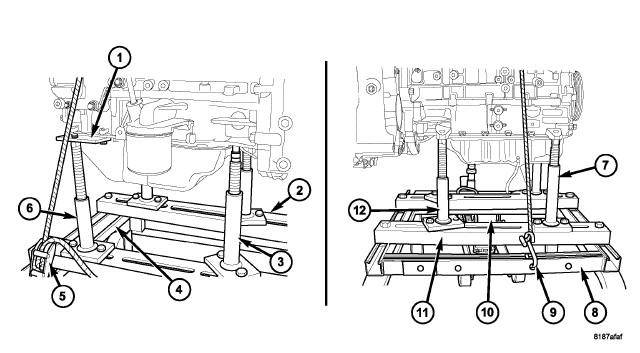

    Fig 21: ENGINE DOLLY
    GC0102960Courtesy of CHRYSLER LLC
  53. Install engine lift fixture 9704 (1).
  54. Position powertrain dolly 6135 (2,8) and cradle posts 6848 (3,6,7,12) under powertrain.
  55. Lower vehicle onto posts.
    WARNING: Failure to use safety straps, could result in serious or fatal injury.
  56. Install safety straps (5,9).

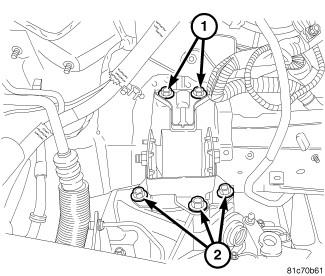

    Fig 22: Left Mount To Transaxle Bolts
    GC0102961Courtesy of CHRYSLER LLC
  57. Remove left mount to transaxle bolts (2).

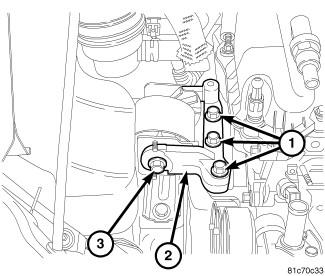

    Fig 23: Right Mount Bracket To Engine Bolts
    GC0102962Courtesy of CHRYSLER LLC
  58. Remove right mount bracket to engine bolts (1).
  59. Raise body away from powertrain assembly.
