MANIFOLD, Exhaust: Removal: SRT4

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

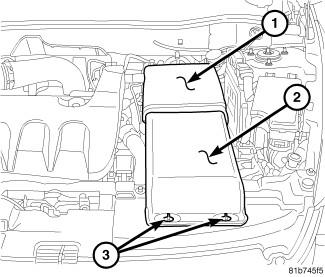

Fig 1: AIR INLET
GC0103054Courtesy of CHRYSLER LLC
  1. Remove air inlet duct (2).

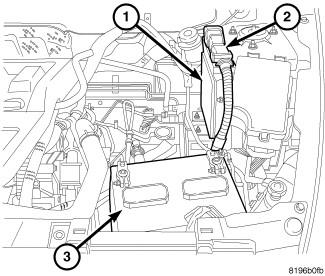

    Fig 2: BATTERY
    GC0103055Courtesy of CHRYSLER LLC
  2. Disconnect negative cable at battery (3).
  3. Remove turbocharger. See Engine/Turbocharger System/TURBOCHARGER - Removal .
    Fig 3: TURBO EXHAUST MANIFOLD TORQUE SEQUENCE
    GC0103056Courtesy of CHRYSLER LLC
  4. Remove exhaust manifold fasteners and remove manifold.
