MANIFOLD, Exhaust: Installation: SRT4

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: TURBO EXHAUST MANIFOLD TORQUE SEQUENCE
GC0103056Courtesy of CHRYSLER LLC
NOTE: When installing exhaust manifold bolts, apply Mopar® Lock and Seal to bolts 5,6,7,8.
  1. Install a new exhaust manifold gasket DO NOT APPLY SEALER  .
  2. Tighten the exhaust manifold bolts to 34 N.m (25 ft. lbs.).
  3. Install turbocharger. See Engine/Turbocharger System/TURBOCHARGER - Installation .

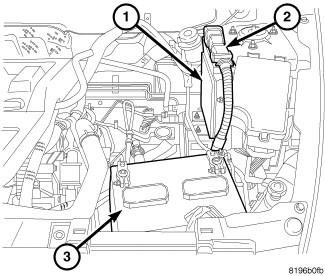

    Fig 2: BATTERY
    GC0103057Courtesy of CHRYSLER LLC
  4. Connect negative cable at battery (3).

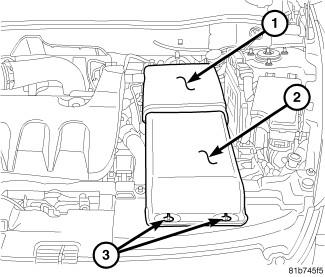

    Fig 3: AIR INLET
    GC0103058Courtesy of CHRYSLER LLC
  5. Install air inlet duct (2).
