Section 43 (2.4L Engine (Service Information)): Installation: SRT4

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

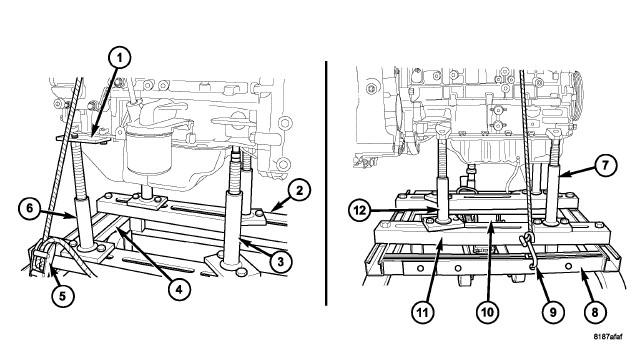

Fig 1: ENGINE DOLLY
GC0102985Courtesy of CHRYSLER LLC
  1. Position powertrain dolly under body.
  2. Lower body on to powertrain assembly.
    Fig 2: Right Mount Retaining Bolts
    GC0102986Courtesy of CHRYSLER LLC
  3. Install right mount retaining bolts (1).

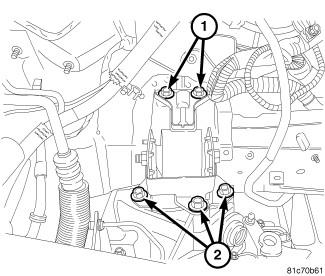

    Fig 3: Left Mount To Transaxle Bolts
    GC0102987Courtesy of CHRYSLER LLC
  4. Install left mount to transaxle bolts (2).

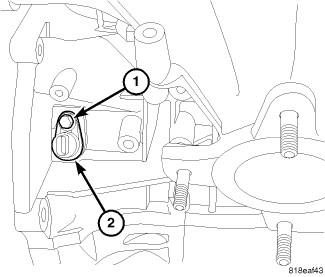

    Fig 4: Crankshaft Position Sensor
    GC0102988Courtesy of CHRYSLER LLC
  5. Install air inlet from turbo charger.
  6. Connect CKP sensor (2).
  7. Install lower bell housing bolts.
  8. Install front engine mount bracket.

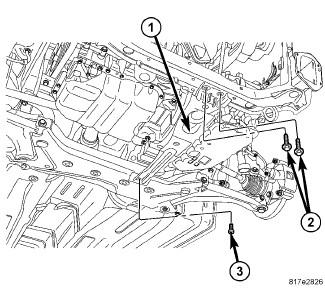

    Fig 5: FORE AFT MEMBER
    GC0102989Courtesy of CHRYSLER LLC
  9. Install fore/aft member (1).
  10. Rear mount through bolt.
  11. Install exhaust pipe from catalytic converter.
  12. Connect downstream oxygen sensor electrical connector.

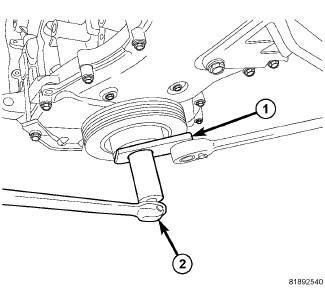

    Fig 6: DAMPER REMOVAL
    GC0102990Courtesy of CHRYSLER LLC
  13. Install crankshaft damper bolt and tighten bolt to 210 N.m (155 ft. lbs.) using damper holder 9707.
  14. Install axle shafts.
  15. Install tires.
  16. Raise vehicle.

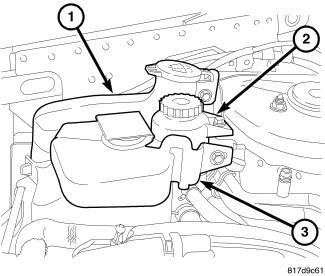

    Fig 7: COOLANT RESERVOIR
    GC0102991Courtesy of CHRYSLER LLC
  17. Connect power steering return to reservoir (2).
  18. Install lower radiator hose from oil cooler.
  19. Connect A/C, generator, starter, knock sensor, oil pressure sensor electrical connectors.
    Fig 8: Removing/Installing Intake Bolts In Sequence
    GC0082457Courtesy of CHRYSLER LLC
  20. Install intake manifold. See Engine/Manifolds/MANIFOLD, Intake - Installation .

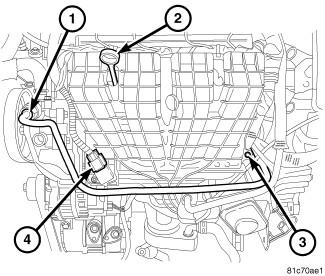

    Fig 9: POWER STEERING LINE
    GC0102992Courtesy of CHRYSLER LLC
  21. Connect power steering line to pump (1).

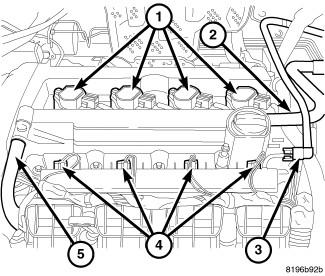

    Fig 10: COIL CONNECTOR
    GC0102993Courtesy of CHRYSLER LLC
  22. Connect PCV hose (5).
  23. Connect oil control solenoids, oxygen sensor, MAP, ETC, flow control valve, oil temperature sensor, injectors (4) , cam sensors, coils (1), capacitor, and coolant temperature sensor electrical connectors and reposition harness.
  24. Connect fuel line (3).

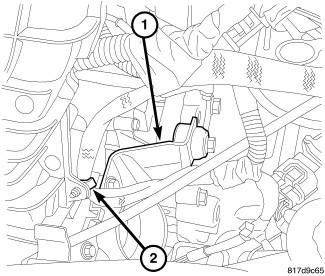

    Fig 11: THROTTLE BODY SUPPORT
    GC0102994Courtesy of CHRYSLER LLC
  25. Install engine oil level indicator.
  26. Install harness retainer (2) from intake manifold.
  27. Install throttle body support (1).
    Fig 12: POWER STEERING LINE SUPPORT
    GC0102995Courtesy of CHRYSLER LLC
  28. Install power steering line support (1).
  29. Install ground cable to bell housing.
  30. Install vacuum lines to intake manifold.
    Fig 13: GROUND STRAP
    GC0102933Courtesy of CHRYSLER LLC
  31. Install ground strap from cylinder head (1).

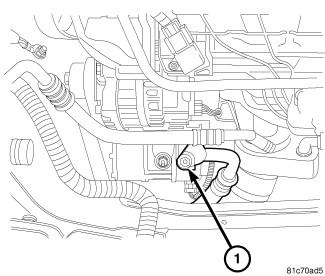

    Fig 14: A/C LINES
    GC0102996Courtesy of CHRYSLER LLC
  32. Install A/C lines to compressor (1).
    Fig 15: COOLANT RESERVOIR
    GC0102991Courtesy of CHRYSLER LLC
  33. Install coolant reservoir (3).
  34. Install cooling module.

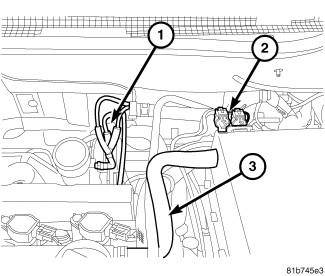

    Fig 16: SOLENOIDS
    GC0102997Courtesy of CHRYSLER LLC
  35. Install vacuum lines to turbo charger (1).
  36. Connect air inlet temp sensor and boost pressure sensor electrical connectors.
  37. Connect solenoid electrical connectors (2).
  38. Remove coolant after run pump from cowl.
  39. Connect coolant after run pump electrical connector.
  40. Remove heater hoses from coolant adapter.

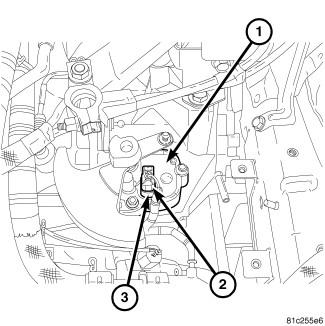

    Fig 17: BACKUP LAMP SWITCH
    GC0102998Courtesy of CHRYSLER LLC
  41. Connect reverse light connector (2) on transaxle.

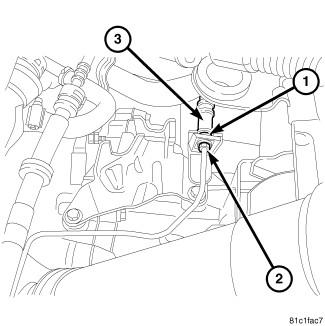

    Fig 18: HYDRO LINE AND CLIP
    GC0102999Courtesy of CHRYSLER LLC
  42. Connect hydraulic clutch line (3).

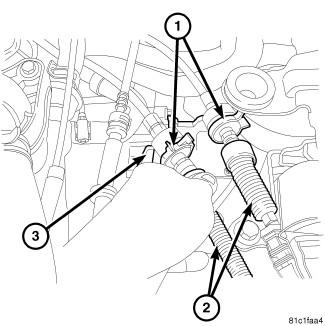

    Fig 19: SHIFT CABLES
    GC0103000Courtesy of CHRYSLER LLC
  43. Connect shift linkage (1).
  44. Install PCM and PCM bracket.
  45. Install lower radiator hose from radiator and coolant adapter.
  46. Install upper radiator hose.
  47. Install core support.
  48. Install radiator closeout panel.
  49. Install inter cooler inlet hose.

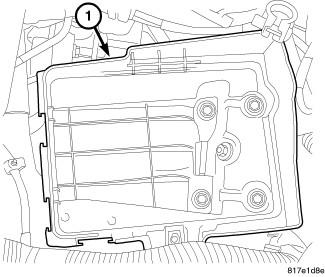

    Fig 20: BATTERY TRAY
    GC0103001Courtesy of CHRYSLER LLC
  50. Install battery tray
  51. Install air cleaner housing.

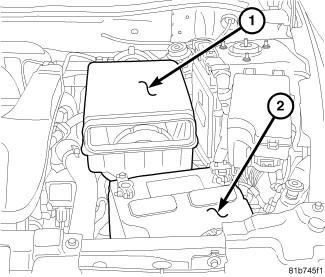

    Fig 21: BATTERY
    GC0103002Courtesy of CHRYSLER LLC
  52. Install battery (2).
  53. Connect cables to battery (2).

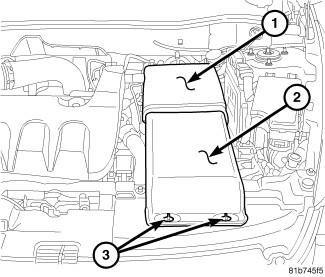

    Fig 22: AIR INLET
    GC0103003Courtesy of CHRYSLER LLC
  54. Install air inlet (2).
  55. Start engine and check for leaks.
