INSULATOR, Engine Mount, Front: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

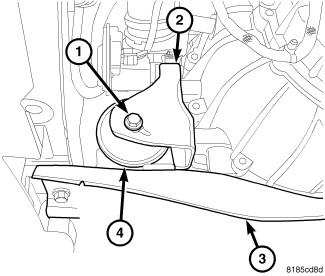

Fig 1: FRONT MOUNT THROUGH BOLT
GC0102773Courtesy of CHRYSLER LLC
  1. Raise vehicle.
  2. Remove fore aft member (3) to mount (4) bolts.
  3. Remove mount through bolt (1).
  4. Remove fore aft member (3) mounting bolts and remove.
  5. Remove front mount (4).
