SEAL, Crankshaft Oil, Front: Installation: Installation

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

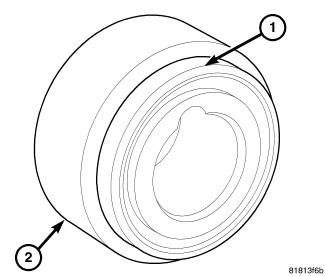

Fig 1: Front Crankshaft Seal Installer
GC0102758Courtesy of CHRYSLER LLC
  1. Place seal (1) onto Seal installer 9506 (2) with seal spring towards the inside of engine.
    Fig 2: Installing Front Seal
    GC0102759Courtesy of CHRYSLER LLC
  2. Install new seal (1) by using Seal installer 9506 (2) and crankshaft damper bolt (3).
    Fig 3: Front Seal Installed
    GC0102760Courtesy of CHRYSLER LLC
  3. Press seal into front cover until Seal Installer 9506 (1) seats against timing chain cover (3).
  4. Remove seal installer 9506 (1).
    Fig 4: Damper Removal
    GC0102761Courtesy of CHRYSLER LLC
  5. Install crankshaft vibration damper.
  6. Oil the bolt threads and between the bolt head and washer.
  7. Install damper retaining bolt and damper holder 9707 (1). Tighten bolt to 50 N.m + 68° (37 ft. lbs. + 68°).
