CAMSHAFT, Engine: Installation: Installation

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: CAM CAP BEARING IDENTIFICATION

Courtesy of CHRYSLER LLC

The front camshaft bearing cap (1) is numbered (2) either one, two, or three, this corresponds to the select fit front exhaust camshaft bearing to use.

Fig 2: CAM BEARING IDENTIFICATION
Courtesy of CHRYSLER LLC
Install the corresponding select fit front exhaust camshaft bearing (1).
Oil all of the camshaft journals with clean engine oil.
Install camshaft phasers on camshafts if removed. See Engine/Cylinder Head/ASSEMBLY, Variable Valve Timing - Installation .

Fig 3: Timing Chain Timing Marks
Courtesy of CHRYSLER LLC
Install timing chain onto exhaust cam sprocket making sure that the timing marks (1) on the sprocket and the painted chain link are aligned.
Position exhaust camshaft and on bearing journals in the cylinder head.
Align exhaust cam timing mark (3) so it is in line with the cylinder head cover sealing surface (2).

Fig 4: RAISE INTAKE CAM
Courtesy of CHRYSLER LLC

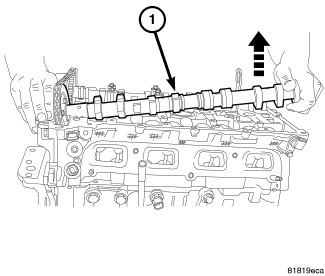

Install intake camshaft by raising the rear of the camshaft upward and roll the sprocket into the chain.

Fig 5: Timing Chain Timing Marks
Courtesy of CHRYSLER LLC
Align the timing marks (1) on the intake cam sprocket with the painted chain link.
Position the intake camshaft into the bearing journals in the cylinder head.

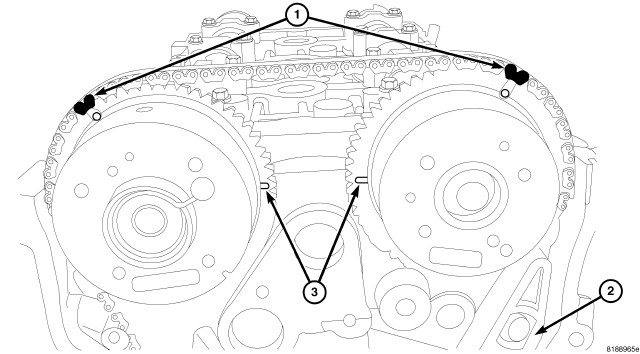

Verify that the timing marks (1) are aligned on both camshafts and that the timing marks (3) are facing each other and are in line with the cylinder head cover sealing surface (2).
CAUTION: Install the front intake and exhaust camshaft bearing cap last. Ensure that the dowels are seated and follow torque sequence or damage to engine could result.

NOTE: If the front camshaft bearing cap is broken, the cylinder head MUST be replaced.

Fig 6: CAM CAP TORQUE SEQUENCE
Courtesy of CHRYSLER LLC
Install intake and exhaust camshaft bearing caps and slowly tighten bolts to 9.5 N.m (85 in. lbs.) in the sequence shown in Fig 6.

Fig 7: Front Cam Cap Torque Sequence
Courtesy of CHRYSLER LLC

NOTE: Verify that the exhaust bearing shells are correctly installed, and the dowels are seated in the head, prior to torquing bolts.
Install the front intake and exhaust bearing cap and tighten bolts to 25 N.m (18 ft. lbs.) in the sequence shown in Fig 7.

Fig 8: TIMING CHAIN TIMING MARKS
Courtesy of CHRYSLER LLC
Verify that all timing marks (1,3) are aligned.
Remove Allen wrench from timing chain tensioner.

Fig 9: WEDGE TOOL
Courtesy of CHRYSLER LLC

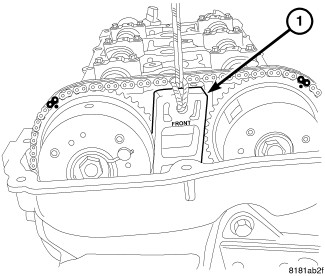

Remove Locking Wedge 9701 (1) by pulling straight upward on pull rope.

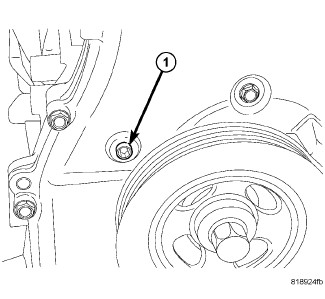

Fig 10: TENSIONER ACCESS PLUG
Courtesy of CHRYSLER LLC
Apply MOPAR® thread sealant to timing tensioner plug (1) and Install.
Rotate the crankshaft CLOCKWISE two complete revolutions until the crankshaft is repositioned at the TDC position.

Fig 11: Camshaft Timing
Courtesy of CHRYSLER LLC
Verify that the camshafts timing marks (3) are in the proper position and in line with the cylinder head cover sealing surface. If the marks do not line up, the timing chain is not correctly installed.
Install right splash shield. Refer to Body/Exterior/SHIELD, Splash - Installation .

Fig 12: GASKET LOCATION
Courtesy of CHRYSLER LLC
Remove RTV from gasket (1).

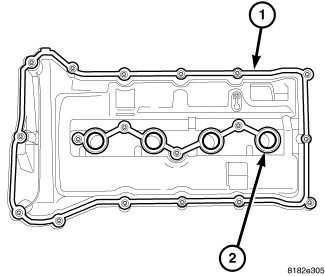

Inspect cylinder head cover gaskets (1,2) for damage. If no damage is present, gaskets can be re-installed.

Fig 13: Remove/Install Cylinder Head Cover Bolts In Sequence
Courtesy of CHRYSLER LLC
Install cylinder head cover. See Engine/Cylinder Head/COVER(S), Cylinder Head - Installation .
Connect negative battery cable.
Fill cooling system. Refer to Cooling - Standard Procedure .
Fill with oil.

Fig 14: Engine Cover
Courtesy of CHRYSLER LLC
Operate engine until it reaches normal operating temperature. Check oil and cooling systems for correct fluid levels.

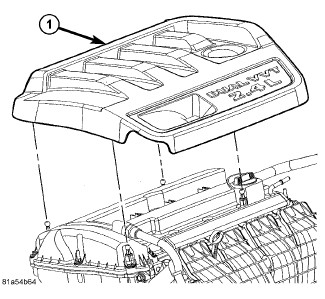

Install engine cover (1).
