BODY, Air Cleaner: Installation: SRT4

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

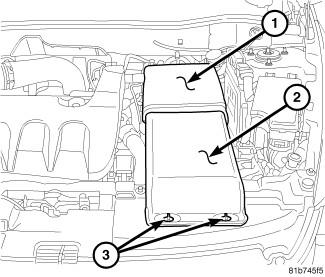

Fig 1: AIR INLET
GC0103026Courtesy of CHRYSLER LLC
  1. Install air cleaner housing (1).
  2. Install air inlet tube (2).
  3. Install air inlet tube retainers (3).
