Air Cleaner: Removal: SRT4

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

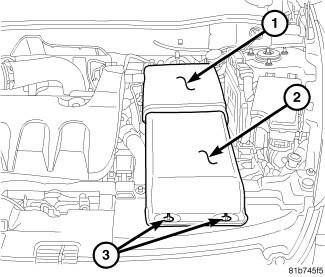

Fig 1: AIR INLET
GC0103023Courtesy of CHRYSLER LLC
  1. Remove inlet retainers (3).
  2. Remove air inlet tube (2).
  3. Remove air filter element.
