Camshaft Sprocket(S)

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

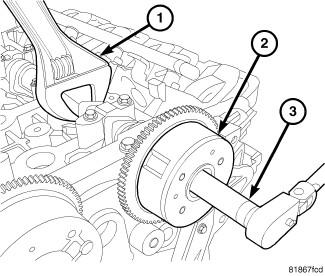

Fig 1: Identifying Camshaft Phaser
GC0084111Courtesy of CHRYSLER LLC
NOTE: The camshaft sprockets and the camshaft phasers are an assembly and cannot be serviced separately.
CAUTION: Do not use an impact wrench to tighten camshaft sprocket bolts. Damage to the camshaft-to-sprocket locating dowel pin and camshaft phaser may occur.
  1. Refer to Camshaft phaser (2) installation. See Engine/Cylinder Head/ASSEMBLY, Variable Valve Timing - Installation .
