VALVE, Oil Pressure Relief: Installation: Installation

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

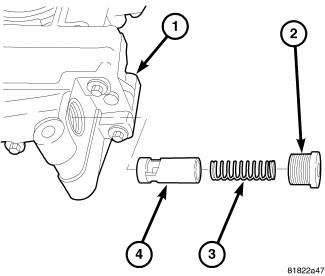

Fig 1: Removing/Installing Pressure Regulating Valve Cap, Pressure Regulating Valve Spring, & Valve
GC0102910Courtesy of CHRYSLER LLC
  1. Lightly coat pressure regulating valve with clean engine oil and install valve (4).
  2. Install spring (3) and cap (2).
  3. Tighten cap to 44 N.m (32 lbs.ft.).
