COOLER, Oil: Installation: Installation
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
- Replace oil cooler seal (1).

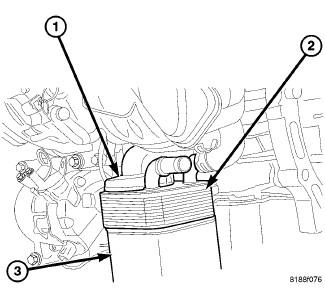

- Lubricate seal and position oil cooler to oil filter adapter, aligning notch to tab.
- Install oil cooler connector bolt (2). Tighten connector bolt to 55 N.m (41 ft. lbs.).
- Install oil filter (3).
- Connect oil cooler coolant hose.
- Lower vehicle.
- Fill cooling system. Refer to Cooling - Standard Procedure .
