Engine Block: Cleaning: Cleaning

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

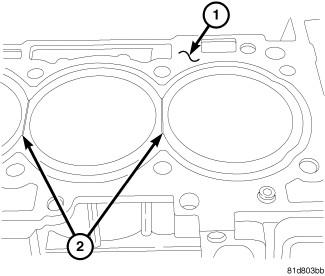

Fig 1: Identifying Saw Cuts - Turbo Engine Block
GC0102719Courtesy of CHRYSLER LLC

Clean cylinder block thoroughly using a suitable cleaning solvent.

On Turbocharged blocks (1), make sure the saw cuts (2) are cleaned out or head gasket failure could occur.
