BODY, Air Cleaner: Installation: Base
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
- Make sure the rubber grommets, for the air cleaner housing lower pins, are in place when reinstalling the air cleaner housing. The rubber grommets mount to the TIPM bracket.
- Push air cleaner housing (1) down while aligning pins into the grommets.
- Connect the throttle body air inlet hose (5) to the air cleaner housing (1).
- Connect intake air temperature sensor connector (4).

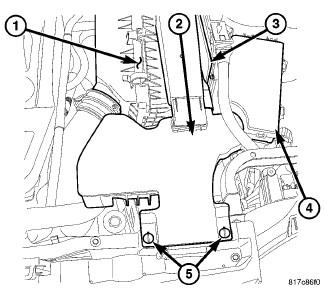

- Install fresh air inlet (2) and lock retainers (5).
