CONVERTER, Catalytic: Removal: SRT4

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

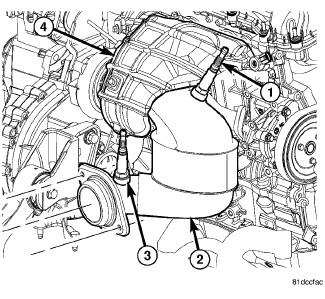

Fig 1: Removing/Installing Under Floor Catalytic Converter, Oxygen Sensors, & Turbocharger Heat Shield - SRT4

Courtesy of CHRYSLER LLC

1 - UPSTREAM OXYGEN SENSOR
2 - CATALYTIC CONVERTER
3 - DOWNSTREAM OXYGEN SENSOR
4 - TURBOCHARGER HEAT SHIELD

Disconnect negative battery cable.
Raise and support vehicle.
Remove under floor catalytic converter. See Exhaust System/CONVERTER, Catalytic - Removal .
Disconnect upstream oxygen sensor electrical connector.
Remove upstream oxygen sensor (1).
Disconnect downstream oxygen sensor electrical connector.
Remove downstream oxygen sensor (3).
Remove turbocharger heat shield (4)

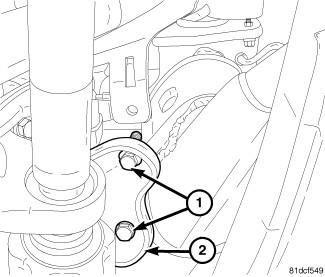

Fig 2: Removing/Installing Catalytic Converter Support Bracket - SRT4
Courtesy of CHRYSLER LLC

1 - BOLT
2 - SUPPORT BRACKET
Remove catalytic converter support bracket bolts (1) and nuts.
If damaged, remove support bracket (2).

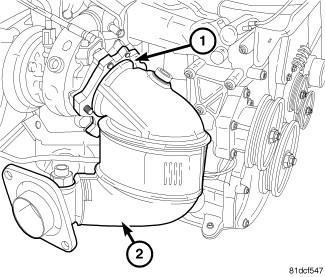

Fig 3: Removing/Installing Catalytic Converter - SRT4
Courtesy of CHRYSLER LLC

1 - MOUNTING NUTS
2 - CATALYTIC CONVERTER
Remove catalytic converter to turbocharger mounting nuts.
Remove catalytic converter.
