COVER, Seat Cushion, Rear: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

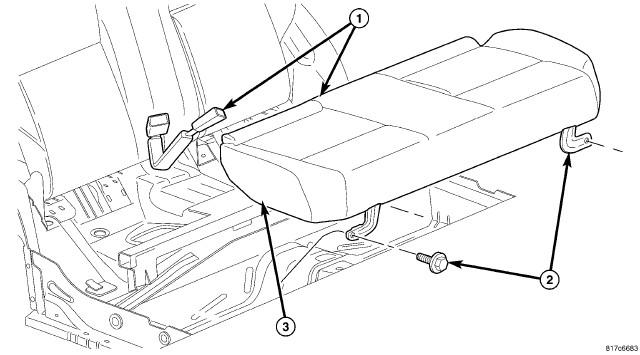

Fig 1: REAR CUSHION
GC0084664Courtesy of CHRYSLER LLC
  1. Remove the bolts (2).
  2. Lift the front of the cushion (3) up and remove the cushion from under the seat back.
