PANEL, Quarter Trim, Rear: Removal: Removal
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

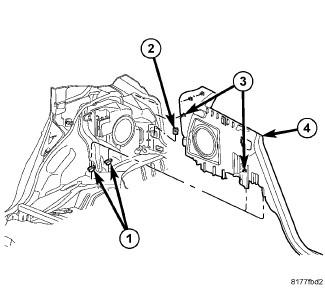

- Remove the rear quarter trim cargo loop (2) retaining screw.
NOTE: If removing the right side lower quarter trim panel, remove the sub woofer (if equipped). Refer to Electrical/Audio and Video/SPEAKER - Removal .
- Remove cargo floor. See Body/Interior/COVER - Removal .
- Remove liftgate scuff plate. See Body/Interior/PLATE, Scuff - Removal .
- Remove B-pillar lower trim. See Body/Interior/PANEL, B-Pillar Trim - Removal .
- Remove the door sill scuff plate. See Body/Interior/PLATE, Scuff - Removal .
- Remove the upper C-pillar trim. See Body/Interior/PANEL, C-Pillar Trim - Removal .
- Remove the rear quarter panel trim (4).
