PANEL, C-Pillar Trim, Upper: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

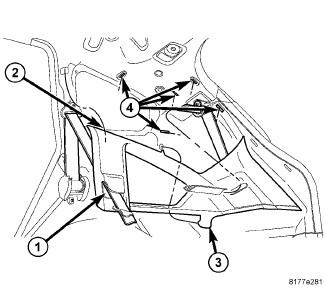

Fig 1: C - PILLAR UPPER TRIM
GC0103334Courtesy of CHRYSLER LLC
  1. Remove lower quarter.
  2. Remove lower seat anchors from seat belt opening (1).
  3. Remove upper quarter by pulling on rear portion of upper quarter disengaging clips from metal holes in body (4).
  4. Remove front lower portion (3) by pulling clip loose.
  5. Slide quarter panel (2) downward and remove from vehicle.
