COVER, Instrument Panel: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

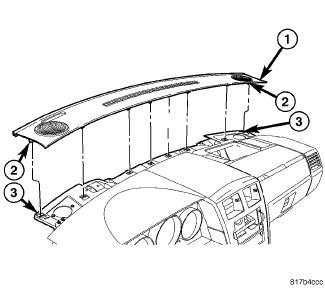

Fig 1: INSTRUMENT PANEL COVER
GC0103313Courtesy of CHRYSLER LLC
  1. Remove A- pillar trim. See Body/Interior/PANEL, A-Pillar Trim - Removal
  2. Using trim stick C-4755, pry up on panel cover (1) disengaging panel clip (2) from instrument panel inner (3).
  3. Remove from vehicle.
