CABLE, Hood Release: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel mounting nuts, then the front drivers side tire.
  2. Remove front drivers side splash shield. See Body/Exterior/SHIELD, Splash - Removal
    Fig 1: LATCH CABLE
    GC0084616Courtesy of CHRYSLER LLC
    NOTE: See cable route.
  3. Press down latch release (3) and remove cable (2) from grommet (1).

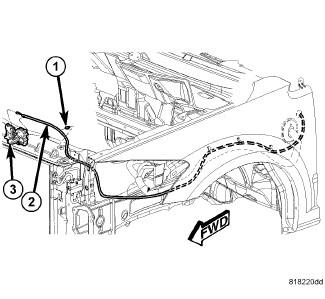

    Fig 2: CABLE ROUTE
    GC0103305Courtesy of CHRYSLER LLC
  4. Remove cable (2) from latch (3).
  5. Follow cable and remove cable from push pin grommets.

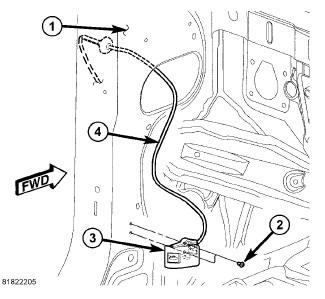

    Fig 3: HOOD RELEASE LEVER
    GC0084617Courtesy of CHRYSLER LLC
  6. Remove fasteners (2) from hood release located inside vehicle.
  7. Remove cable from hood release (3).
