MIRROR, Outside Rearview: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

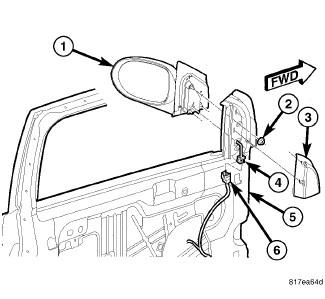

Fig 1: OUTSIDE MIRROR
GC0084614Courtesy of CHRYSLER LLC
  1. Using trim stick C-4755, pry up mirror flag cover (3).
  2. Disconnect wire connector (4) from wire harness (6).
  3. Remove nuts (2).
  4. Remove mirror (1) from door (5).
