LAMP, Dome: Installation: Bulb

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

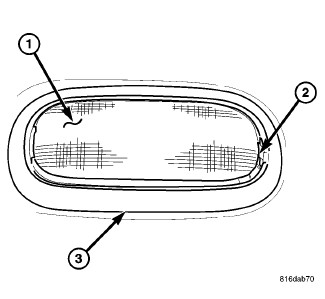

Fig 1: Removing/Installing Dome Lamp
GC0102605Courtesy of CHRYSLER LLC
  1. Push lamp in lamp unit (3) and snap into place.
  2. Position lens (1) on lamp unit (3) and snap into place.
