LAMP, Courtesy, Reading: Installation: Unit

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

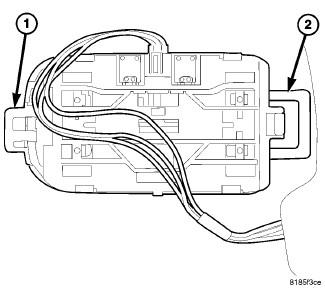

Fig 1: Identifying Courtesy/Reading Lamp Unit & Electrical Connector

Courtesy of CHRYSLER LLC

Connect the courtesy/reading lamp (1) electrical connector (2).

Fig 2: Backside View Of Courtesy/Reading Lamp Unit
Courtesy of CHRYSLER LLC
As shown from the backside in the illustration above, insert the unit tab (2) up into the headliner to the left first of all. Then push up the right side up into the headliner. The lens tab (1) will hold up the right side of the courtesy/reading lamp unit.

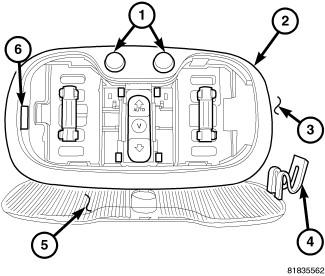

Fig 3: Removing/Installing Courtesy/Reading Lamp Lens
Courtesy of CHRYSLER LLC

NOTE: When installing the lens (5), make sure that the tab on the lens (4) is inserted on the right side of the courtesy/reading lamp unit first.

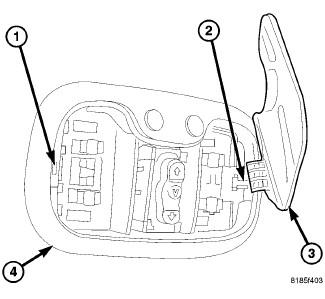

Fig 4: Identifying Right Side Tab Of Courtesy/Reading Lamp Lens
Courtesy of CHRYSLER LLC
Once the right side tab (2) is in the headliner, roll up the left side of the lens (3) until it snaps into place at (1).
