Lamp - Without Flashlight Feature
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
There are two types of cargo lamps available in this vehicle; one with and one without a removable flashlight feature.

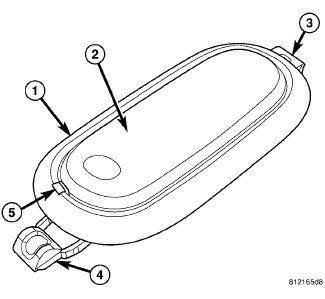

- Position the cargo lamp unit (1) to the mounting hole in the headliner.
- Reconnect the wire harness connector to the connector receptacle on the back of the lamp housing.
- Insert the fixed retainer (4) on the notched end (5) of the lamp housing up into one side of the mounting hole in the headliner.
- Slide the notched end of the housing into the mounting hole far enough to engage the lens hinge/retainer (3) into the opposite side of the hole in the headliner.
- Gently and evenly press the lens hinge/retainer end of the lamp into the mounting hole until the bezel of the lamp housing is flush with the headliner.
- Swing the notched end of the lamp lens (2) into position against the lamp housing, then press on the lens firmly and evenly until it snaps into the housing.
- Reconnect the battery negative cable.
